You are here：Home >> Products >> DC geared motor (encoder)...

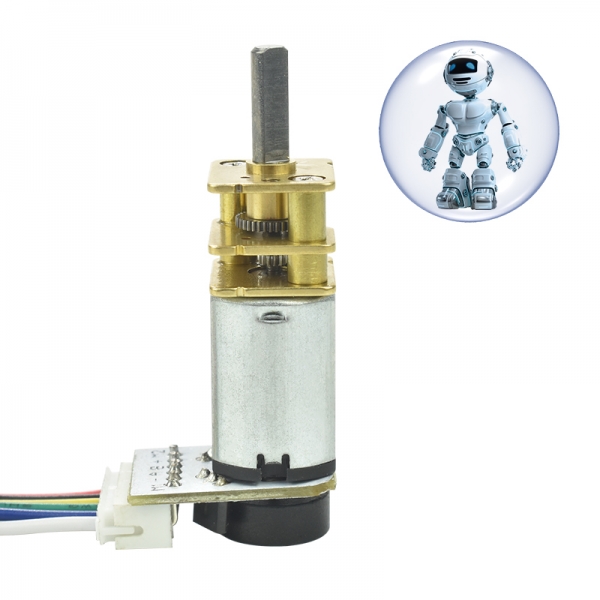

DC geared motor (encoder)

< >

JGA12-N20

Quantity: 330pcs/ctn

Carton size: 38.5*27.5*24 cm

Gross weight: 5.65 kg/ctn

Net weight: 4.95 kg/ctn

Unit weight: 15g

Download

新永泰电机型号XYT Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall		减速箱长度Gearbox Length (MM)
新永泰电机型号XYT Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)	减速箱长度Gearbox Length (MM)
JGA12-N20-12300	5	12	6000	0.035	4980	0.06	8.70	0.45	0.11	0.90	9
JGA12-N20-12300	10	12	3000	0.035	2490	0.06	17.40	0.45	0.11	0.90
JGA12-N20-12300	20	12	1500	0.035	1245	0.06	34.80	0.45	0.22	0.90
JGA12-N20-12300	30	12	1000	0.035	830	0.06	52.20	0.45	0.22	0.90
JGA12-N20-12300	50	12	600	0.035	498	0.06	87.00	0.45	0.35	0.90
JGA12-N20-12300	100	12	300	0.035	249	0.06	174.00	0.45	0.60	0.90
JGA12-N20-12300	150	12	200	0.035	166	0.06	261.00	0.45	1.10	0.90
JGA12-N20-12300	210	12	142	0.035	117	0.06	365.00	0.45	1.50	0.90
JGA12-N20-12300	298	12	100	0.035	83	0.06	518.50	0.45	1.90	0.90
JGA12-N20-12300	380	12	78	0.035	64	0.06	661.00	0.44	2.50	0.90
JGA12-N20-12300	1000	12	30	0.035	24	0.06	1000.00	0.25	2.50	0.90	12
新永泰电机型号XYT Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall		减速箱长度Gearbox Length (MM)
新永泰电机型号XYT Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)	减速箱长度Gearbox Length (MM)
JGA12-N20-06150	5	6	3000	0.022	2460	0.12	7.50	0.19	0.08	0.40	9
JGA12-N20-06150	10	6	1500	0.022	1230	0.12	15.00	0.19	0.11	0.40
JGA12-N20-06150	20	6	750	0.022	615	0.12	30.00	0.19	0.22	0.40
JGA12-N20-06150	30	6	500	0.022	410	0.12	45.00	0.19	0.22	0.40
JGA12-N20-06150	50	6	300	0.022	246	0.12	75.00	0.19	0.35	0.40
JGA12-N20-06150	100	6	150	0.022	123	0.12	150.00	0.19	0.60	0.40
JGA12-N20-06150	150	6	100	0.022	82	0.12	225.00	0.19	1.10	0.40
JGA12-N20-06150	210	6	71	0.022	58.22	0.12	315.00	0.19	1.80	0.40
JGA12-N20-06150	298	6	50	0.022	41	0.12	447.00	0.19	1.90	0.40
JGA12-N20-06150	380	6	39	0.022	31.98	0.12	570.00	0.19	2.50	0.40
JGA12-N20-06150	1000	6	15	0.022	12.3	0.60	1000.00	0.13	2.50	0.40	12
新永泰电机型号XYT Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall		减速箱长度Gearbox Length (MM)
新永泰电机型号XYT Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)	减速箱长度Gearbox Length (MM)
JGA12-N20-0375	5	3	1500	0.017	1230	0.12	7.50	0.10	0.08	0.40	9
JGA12-N20-0375	10	3	750	0.017	615	0.12	15.00	0.10	0.11	0.40
JGA12-N20-0375	20	3	375	0.017	307.5	0.12	30.00	0.10	0.22	0.40
JGA12-N20-0375	30	3	250	0.017	205	0.12	45.00	0.10	0.22	0.40
JGA12-N20-0375	50	3	150	0.017	123	0.12	75.00	0.10	0.35	0.40
JGA12-N20-0375	100	3	75	0.017	61.5	0.12	150.00	0.10	0.60	0.40
JGA12-N20-0375	150	3	50	0.017	41	0.12	225.00	0.10	1.10	0.40
JGA12-N20-0375	210	3	35.5	0.017	29.11	0.12	315.00	0.10	1.80	0.40
JGA12-N20-0375	298	3	25	0.017	20.5	0.12	447.00	0.10	1.90	0.40
JGA12-N20-0375	380	3	19.5	0.017	15.99	0.12	570.00	0.10	2.50	0.40
JGA12-N20-0375	1000	3	7.5	0.017	6.15	0.60	1000.00	0.06	2.50	0.40	12

新永泰电机型号XYT Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall		减速箱长度Gearbox Length (MM)
新永泰电机型号XYT Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)	减速箱长度Gearbox Length (MM)
JGA12-N20-12300	5	12	6000	0.035	4980	0.06	8.70	0.45	0.11	0.90	9
JGA12-N20-12300	10	12	3000	0.035	2490	0.06	17.40	0.45	0.11	0.90
JGA12-N20-12300	20	12	1500	0.035	1245	0.06	34.80	0.45	0.22	0.90
JGA12-N20-12300	30	12	1000	0.035	830	0.06	52.20	0.45	0.22	0.90
JGA12-N20-12300	50	12	600	0.035	498	0.06	87.00	0.45	0.35	0.90
JGA12-N20-12300	100	12	300	0.035	249	0.06	174.00	0.45	0.60	0.90
JGA12-N20-12300	150	12	200	0.035	166	0.06	261.00	0.45	1.10	0.90
JGA12-N20-12300	210	12	142	0.035	117	0.06	365.00	0.45	1.50	0.90
JGA12-N20-12300	298	12	100	0.035	83	0.06	518.50	0.45	1.90	0.90
JGA12-N20-12300	380	12	78	0.035	64	0.06	661.00	0.44	2.50	0.90
JGA12-N20-12300	1000	12	30	0.035	24	0.06	1000.00	0.25	2.50	0.90	12
新永泰电机型号XYT Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall		减速箱长度Gearbox Length (MM)
新永泰电机型号XYT Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)	减速箱长度Gearbox Length (MM)
JGA12-N20-06150	5	6	3000	0.022	2460	0.12	7.50	0.19	0.08	0.40	9
JGA12-N20-06150	10	6	1500	0.022	1230	0.12	15.00	0.19	0.11	0.40
JGA12-N20-06150	20	6	750	0.022	615	0.12	30.00	0.19	0.22	0.40
JGA12-N20-06150	30	6	500	0.022	410	0.12	45.00	0.19	0.22	0.40
JGA12-N20-06150	50	6	300	0.022	246	0.12	75.00	0.19	0.35	0.40
JGA12-N20-06150	100	6	150	0.022	123	0.12	150.00	0.19	0.60	0.40
JGA12-N20-06150	150	6	100	0.022	82	0.12	225.00	0.19	1.10	0.40
JGA12-N20-06150	210	6	71	0.022	58.22	0.12	315.00	0.19	1.80	0.40
JGA12-N20-06150	298	6	50	0.022	41	0.12	447.00	0.19	1.90	0.40
JGA12-N20-06150	380	6	39	0.022	31.98	0.12	570.00	0.19	2.50	0.40
JGA12-N20-06150	1000	6	15	0.022	12.3	0.60	1000.00	0.13	2.50	0.40	12
新永泰电机型号XYT Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall		减速箱长度Gearbox Length (MM)
新永泰电机型号XYT Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)	减速箱长度Gearbox Length (MM)
JGA12-N20-0375	5	3	1500	0.017	1230	0.12	7.50	0.10	0.08	0.40	9
JGA12-N20-0375	10	3	750	0.017	615	0.12	15.00	0.10	0.11	0.40
JGA12-N20-0375	20	3	375	0.017	307.5	0.12	30.00	0.10	0.22	0.40
JGA12-N20-0375	30	3	250	0.017	205	0.12	45.00	0.10	0.22	0.40
JGA12-N20-0375	50	3	150	0.017	123	0.12	75.00	0.10	0.35	0.40
JGA12-N20-0375	100	3	75	0.017	61.5	0.12	150.00	0.10	0.60	0.40
JGA12-N20-0375	150	3	50	0.017	41	0.12	225.00	0.10	1.10	0.40
JGA12-N20-0375	210	3	35.5	0.017	29.11	0.12	315.00	0.10	1.80	0.40
JGA12-N20-0375	298	3	25	0.017	20.5	0.12	447.00	0.10	1.90	0.40
JGA12-N20-0375	380	3	19.5	0.017	15.99	0.12	570.00	0.10	2.50	0.40
JGA12-N20-0375	1000	3	7.5	0.017	6.15	0.60	1000.00	0.06	2.50	0.40	12

Household appliances: electric curtains, integrated stoves, coffee machines, smart toilets, sweeping robots, dishwashers, range hoods, smart door locks

Personal care: curling iron, massage equipment, electric hair clipper

Office equipment: paper shredders, printers, projectors, banknote counters, coin counters

Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs

Industrial equipment: water and electricity valves, air switches, pumps, automatic door switches, automatic lubrication equipment

Commercial equipment: vending machines, parking locks, ATM machines, smart lamps

Robots: manipulators, drones, service robots

Quantity: 330pcs/ctn

Carton size: 38.5*27.5*24 cm

Gross weight: 5.65 kg/ctn

Net weight: 4.95 kg/ctn

Unit weight: 15g
