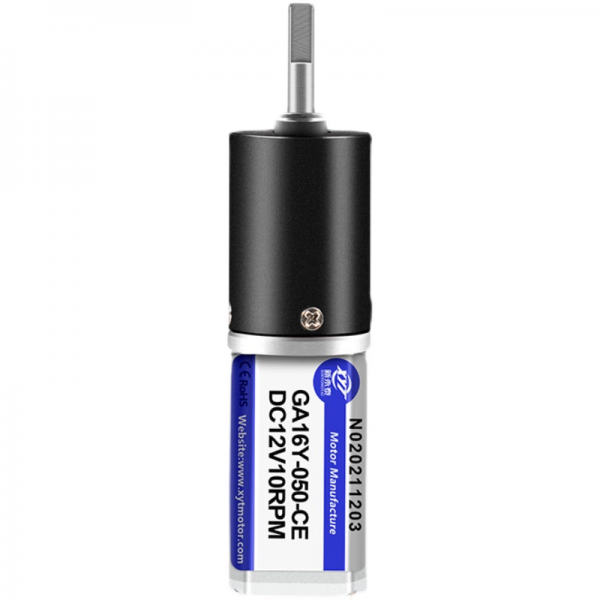

DC gear motor (planetary gear)

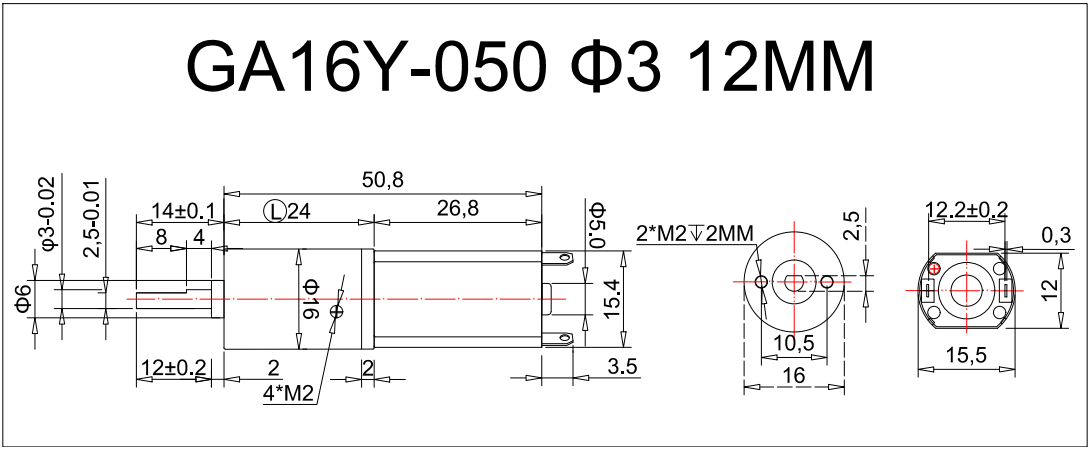

GA16Y-050 Φ3 12mm

Rated Voltage: 6-12V
Reduction Ratio: 4.75-1026I
No-load speed(RPM): 11.5~2526rpm
No-Load Current mA(≤): 100-200mA
Rated Speed(RPM): 8.5-1852rpm
Rated Current mA(≤): 300-500mA
Rated Torque(Kg,cm): 0.04-8 kg,cm
Stall/Maximum Torque (Kg,cm): 0.11-24kg,cm
Stall Current(A) : 0.8-1.2A
Shaft: 416 Steel, Φ3.0 Length 12mm ,
Gear: powder gear

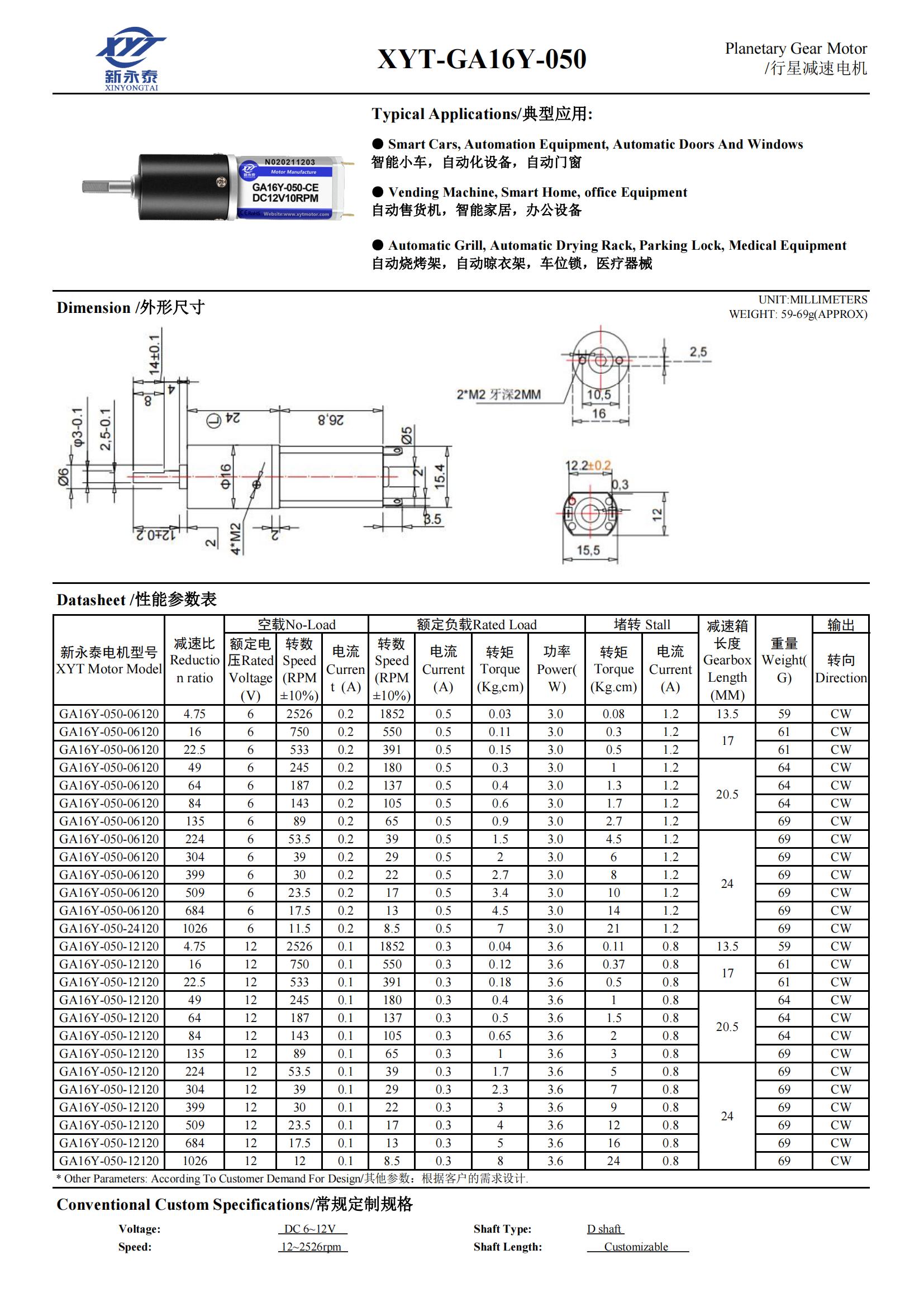

Download

    XYT Motor Model

    Reduction ratio

    No-Load

    Rated Load

    Stall

    Gearbox Length (MM)

    Weight(G)

    Output

    Starting Voltage(V)

    Rated Voltage (V)

    Speed (RPM ±10%)

    Current  (A)

    Speed (RPM ±10%)

    Current  (A)

    Torque (Kg,cm)

    Power(W)

    Torque (Kg.cm)

    Current  (A)

    Direction

    GA16Y-050-06120

    4.75

    6

    2526

    0.2

    1852

    0.5

    0.03

    3.0

    0.08

    1.2

    13.5

    59

    CW

    0.6

    GA16Y-050-06120

    16

    6

    750

    0.2

    550

    0.5

    0.11

    3.0

    0.3

    1.2

    17

    61

    CW

    0.6

    GA16Y-050-06120

    22.5

    6

    533

    0.2

    391

    0.5

    0.15

    3.0

    0.5

    1.2

    61

    CW

    0.6

    GA16Y-050-06120

    49

    6

    245

    0.2

    180

    0.5

    0.3

    3.0

    1

    1.2

    20.5

    64

    CW

    0.6

    GA16Y-050-06120

    64

    6

    187

    0.2

    137

    0.5

    0.4

    3.0

    1.3

    1.2

    64

    CW

    0.6

    GA16Y-050-06120

    84

    6

    143

    0.2

    105

    0.5

    0.6

    3.0

    1.7

    1.2

    64

    CW

    0.6

    GA16Y-050-06120

    135

    6

    89

    0.2

    65

    0.5

    0.9

    3.0

    2.7

    1.2

    69

    CW

    0.6

    GA16Y-050-06120

    224

    6

    53.5

    0.2

    39

    0.5

    1.5

    3.0

    4.5

    1.2

    24

    69

    CW

    0.6

    GA16Y-050-06120

    304

    6

    39

    0.2

    29

    0.5

    2

    3.0

    6

    1.2

    69

    CW

    0.6

    GA16Y-050-06120

    399

    6

    30

    0.2

    22

    0.5

    2.7

    3.0

    8

    1.2

    69

    CW

    0.6

    GA16Y-050-06120

    509

    6

    23.5

    0.2

    17

    0.5

    3.4

    3.0

    10

    1.2

    69

    CW

    0.6

    GA16Y-050-06120

    684

    6

    17.5

    0.2

    13

    0.5

    4.5

    3.0

    14

    1.2

    69

    CW

    0.6

    GA16Y-050-24120

    1026

    6

    11.5

    0.2

    8.5

    0.5

    7

    3.0

    21

    1.2

    69

    CW

    0.6

    XYT Motor Model

    Reduction ratio

    No-Load

    Rated Load

    Stall

    Gearbox Length (MM)

    Weight(G)

    Output

    Starting Voltage(V)

    Rated Voltage (V)

    Speed (RPM ±10%)

    Current  (A)

    Speed (RPM ±10%)

    Current  (A)

    Torque (Kg,cm)

    Power(W)

    Torque (Kg.cm)

    Current  (A)

    Direction

    GA16Y-050-12120

    4.75

    12

    2526

    0.1

    1852

    0.3

    0.04

    3.6

    0.11

    0.8

    13.5

    59

    CW

    1

    GA16Y-050-12120

    16

    12

    750

    0.1

    550

    0.3

    0.12

    3.6

    0.37

    0.8

    17

    61

    CW

    1

    GA16Y-050-12120

    22.5

    12

    533

    0.1

    391

    0.3

    0.18

    3.6

    0.5

    0.8

    61

    CW

    1

    GA16Y-050-12120

    49

    12

    245

    0.1

    180

    0.3

    0.4

    3.6

    1

    0.8

    20.5

    64

    CW

    1

    GA16Y-050-12120

    64

    12

    187

    0.1

    137

    0.3

    0.5

    3.6

    1.5

    0.8

    64

    CW

    1

    GA16Y-050-12120

    84

    12

    143

    0.1

    105

    0.3

    0.65

    3.6

    2

    0.8

    64

    CW

    1

    GA16Y-050-12120

    135

    12

    89

    0.1

    65

    0.3

    1

    3.6

    3

    0.8

    69

    CW

    1

    GA16Y-050-12120

    224

    12

    53.5

    0.1

    39

    0.3

    1.7

    3.6

    5

    0.8

    24

    69

    CW

    1

    GA16Y-050-12120

    304

    12

    39

    0.1

    29

    0.3

    2.3

    3.6

    7

    0.8

    69

    CW

    1

    GA16Y-050-12120

    399

    12

    30

    0.1

    22

    0.3

    3

    3.6

    9

    0.8

    69

    CW

    1

    GA16Y-050-12120

    509

    12

    23.5

    0.1

    17

    0.3

    4

    3.6

    12

    0.8

    69

    CW

    1

    GA16Y-050-12120

    684

    12

    17.5

    0.1

    13

    0.3

    5

    3.6

    16

    0.8

    69

    CW

    1

    GA16Y-050-12120

    1026

    12

    12

    0.1

    8.5

    0.3

    8

    3.6

    24

    0.8

    69

    CW

    1
    typical application
    Household appliances: Electric curtains, integrated stoves, coffee machines, smart toilets, robot vacuums, dishwashers, range hoods, smart door locks
    Personal care: hair curlers, massage instruments, electric hair clippers
    Office equipment: shredders, printers, projectors, banknote counting machines, coin counting machines
    Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs
    Industrial equipment: water and electrical valves, air switches, pumps, automatic door switches, automatic lubrication equipment
    Commercial equipment: vending machines, parking locks, ATM machines, smart lamps
    Robots: manipulators, drones, service robots
    Quantity: 192pcs/ctn
    Carton size: 38.5*27.5*24 cm
    Gross weight: 14 kg/ctn
    Net weight: 13.3 kg/ctn
    Single weight: 69g
    EPE Pearl Cotton Packaging
    Standard carton packaging
