DC gear motor (spur gear)

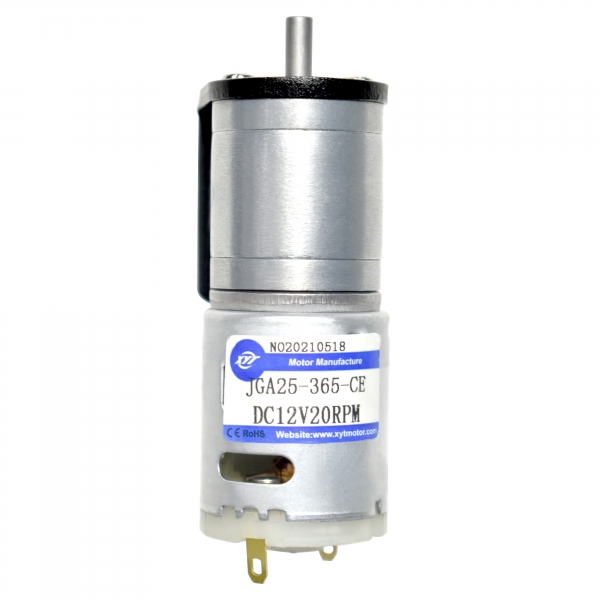

JGA25-365 Gearmotor

Rated Voltage: 6-12V
Reduction Ratio: 4.4-500I
No-load speed(RPM): 10~2318rpm
No-Load Current mA(≤): 80-160mA
Rated Speed(RPM): 7-1900rpm
Rated Current mA(≤): 150-300mA
 Rated Torque(Kg,cm): 0.3-9kg,cm
Stall/Maximum Torque (Kg,cm): 1.15-60kg,cm
Stall Current(A) : 1-2A

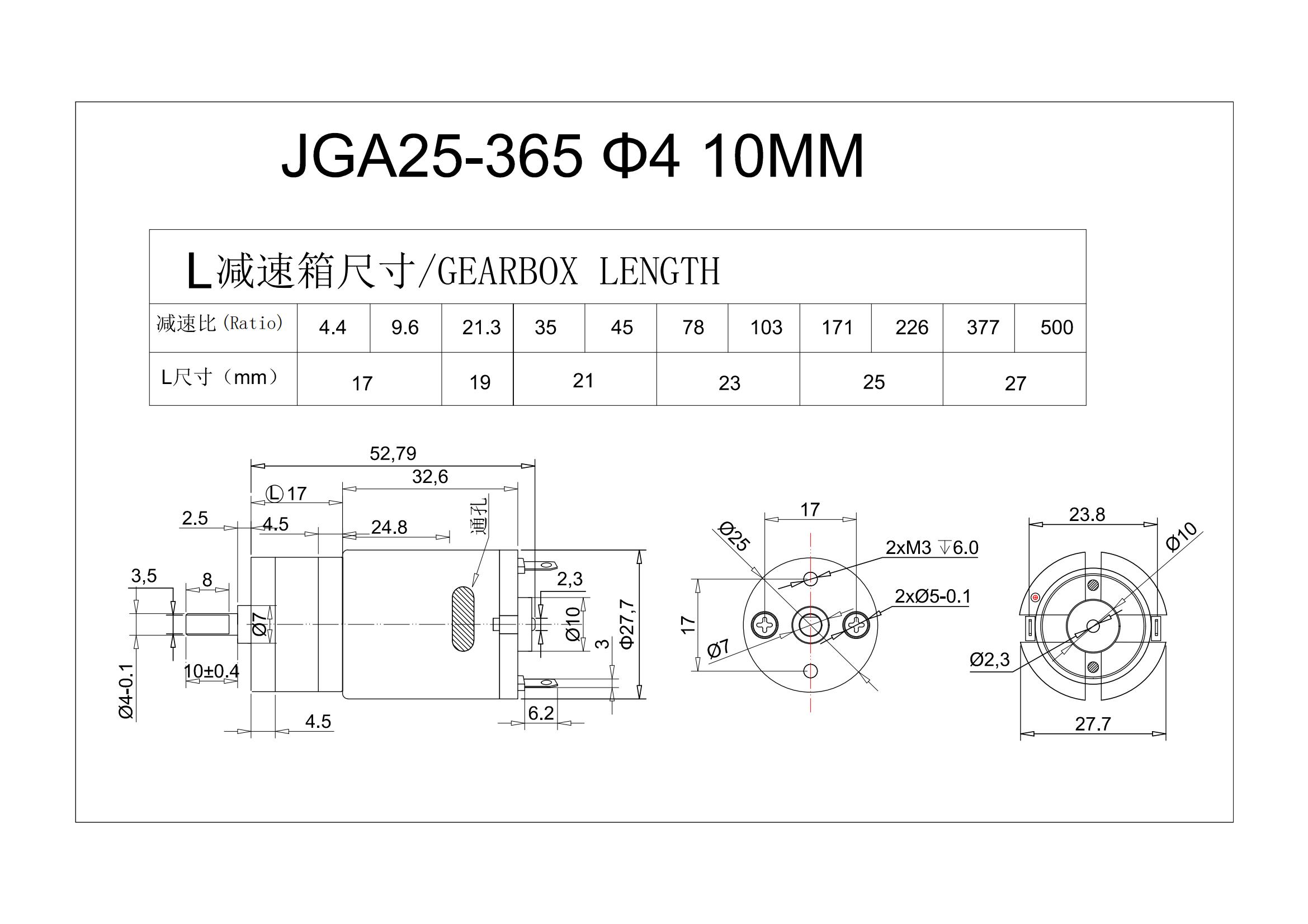

Shaft: 416 Steel, Φ4.0 Length 10mm ,
Gear: powder gear , copper gear
Download

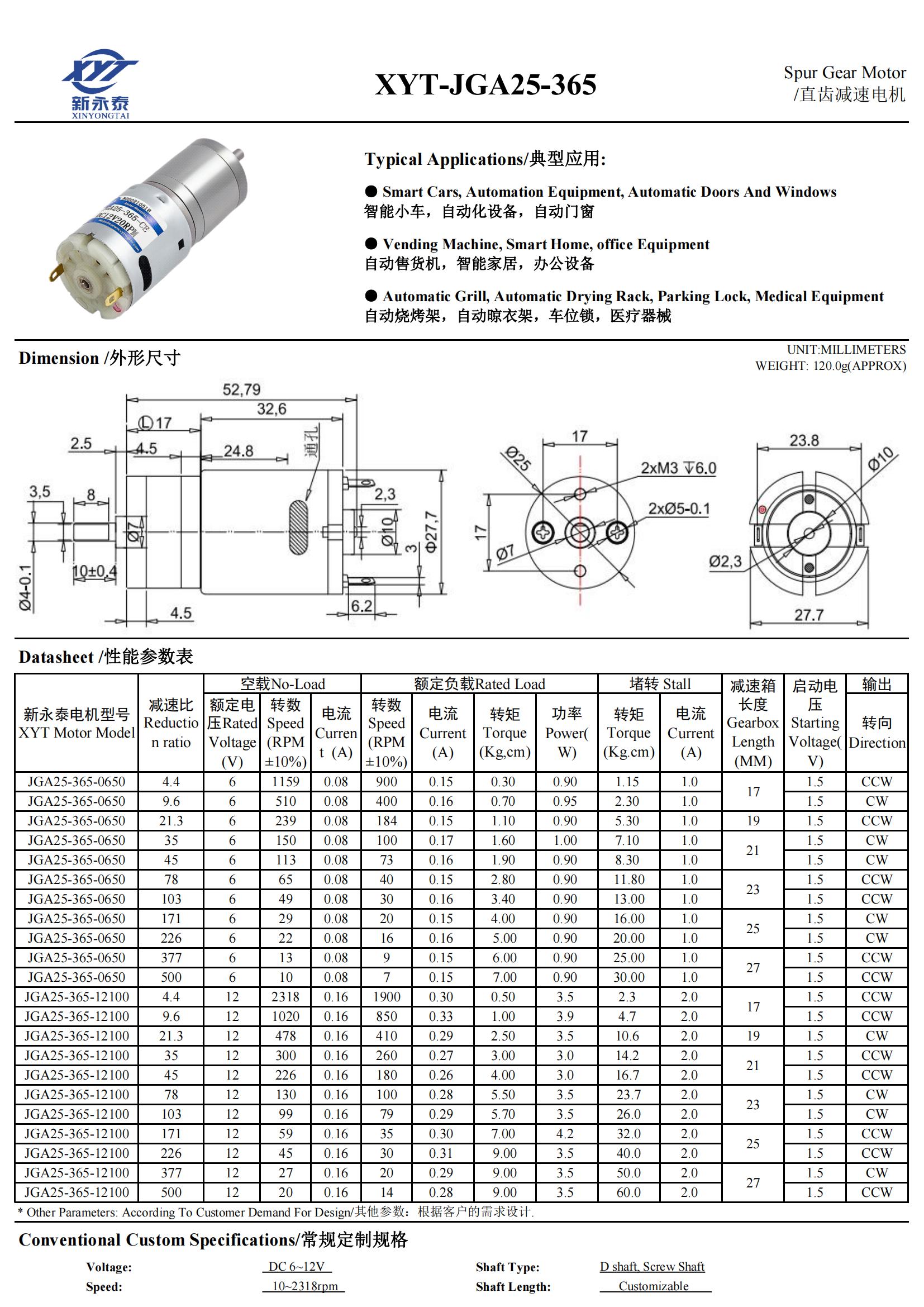

    XYT Motor Model

    Reduction ratio

    No-Load

    Rated Load

    Stall

    Output

    Gearbox Length (MM)

    Weight(G)

    Starting Voltage(V)

    Rated Voltage (V)

    Speed (RPM ±10%)

    Current  (A)

    Speed (RPM ±10%)

    Current  (A)

    Torque (Kg,cm)

    Power(W)

    Torque (Kg.cm)

    Current  (A)

    Direction

    JGA25-365-0650

    4.4

    6

    1159

    0.08

    900

    0.15

    0.30

    0.90

    1.15

    1.0

    CCW

    17

    120

    1.5

    JGA25-365-0650

    9.6

    6

    510

    0.08

    400

    0.16

    0.70

    0.95

    2.30

    1.0

    CW

    JGA25-365-0650

    21.3

    6

    239

    0.08

    184

    0.15

    1.10

    0.90

    5.30

    1.0

    CCW

    19

    JGA25-365-0650

    35

    6

    150

    0.08

    100

    0.17

    1.60

    1.00

    7.10

    1.0

    CW

    21

    JGA25-365-0650

    45

    6

    113

    0.08

    73

    0.16

    1.90

    0.90

    8.30

    1.0

    CW

    JGA25-365-0650

    78

    6

    65

    0.08

    40

    0.15

    2.80

    0.90

    11.80

    1.0

    CCW

    23

    JGA25-365-0650

    103

    6

    49

    0.08

    30

    0.16

    3.40

    0.90

    13.00

    1.0

    CCW

    JGA25-365-0650

    171

    6

    29

    0.08

    20

    0.15

    4.00

    0.90

    16.00

    1.0

    CW

    25

    JGA25-365-0650

    226

    6

    22

    0.08

    16

    0.16

    5.00

    0.90

    20.00

    1.0

    CW

    JGA25-365-0650

    377

    6

    13

    0.08

    9

    0.15

    6.00

    0.90

    25.00

    1.0

    CCW

    27

    JGA25-365-0650

    500

    6

    10

    0.08

    7

    0.15

    7.00

    0.90

    30.00

    1.0

    CCW

    XYT Motor Model

    Reduction ratio

    No-Load

    Rated Load

    Stall

    Output

    Gearbox Length (MM)

    Weight(G)

    Starting Voltage(V)

    Rated Voltage (V)

    Speed (RPM ±10%)

    Current  (A)

    Speed (RPM ±10%)

    Current  (A)

    Torque (Kg,cm)

    Power(W)

    Torque (Kg.cm)

    Current  (A)

    Direction

    JGA25-365-12100

    4.4

    12

    2318

    0.16

    1900

    0.30

    0.50

    3.5

    2.3

    2.0

    CCW

    17

    120

    1.5

    JGA25-365-12100

    9.6

    12

    1020

    0.16

    850

    0.33

    1.00

    3.9

    4.7

    2.0

    CW

    JGA25-365-12100

    21.3

    12

    478

    0.16

    410

    0.29

    2.50

    3.5

    10.6

    2.0

    CCW

    19

    JGA25-365-12100

    35

    12

    300

    0.16

    260

    0.27

    3.00

    3.0

    14.2

    2.0

    CW

    21

    JGA25-365-12100

    45

    12

    226

    0.16

    180

    0.26

    4.00

    3.0

    16.7

    2.0

    CW

    JGA25-365-12100

    78

    12

    130

    0.16

    100

    0.28

    5.50

    3.5

    23.7

    2.0

    CCW

    23

    JGA25-365-12100

    103

    12

    99

    0.16

    79

    0.29

    5.70

    3.5

    26.0

    2.0

    CCW

    JGA25-365-12100

    171

    12

    59

    0.16

    35

    0.30

    7.00

    4.2

    32.0

    2.0

    CW

    25

    JGA25-365-12100

    226

    12

    45

    0.16

    30

    0.31

    9.00

    3.5

    40.0

    2.0

    CW

    JGA25-365-12100

    377

    12

    27

    0.16

    20

    0.29

    9.00

    3.5

    50.0

    2.0

    CCW

    27

    JGA25-365-12100

    500

    12

    20

    0.16

    14

    0.28

    9.00

    3.5

    60.0

    2.0

    CCW
    typical application
    Household appliances: Electric curtains, integrated stoves, coffee machines, smart toilets, robot vacuums, dishwashers, range hoods, smart door locks
    Personal care: hair curlers, massage instruments, electric hair clippers
    Office equipment: shredders, printers, projectors, banknote counting machines, coin counting machines
    Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs
    Industrial equipment: water and electrical valves, air switches, pumps, automatic door switches, automatic lubrication equipment
    Commercial equipment: vending machines, parking locks, ATM machines, smart lamps
    Robots: manipulators, drones, service robots
    Quantity: 120pcs/ctn
    Carton size: 38.5*27.5*24 cm
    Gross weight: 14.4 kg/ctn
    Net weight: 15.0 kg/ctn
    Single weight: 120g
    EPE Pearl Cotton Packaging
    Standard carton packaging
