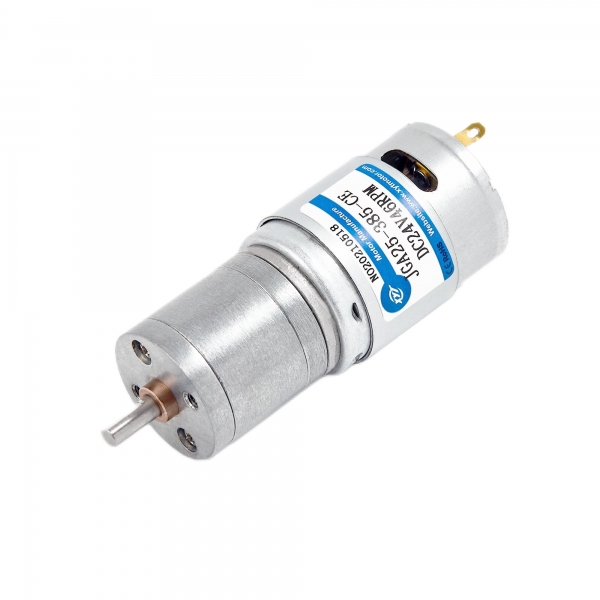

DC gear motor (spur gear)

JGA25-385

Rated Voltage: 6-24V
Reduction Ratio: 4.4-500I
No-load speed(RPM): 12~1931rpm
No-Load Current mA(≤): 40-150mA
Rated Speed(RPM): 9-1370rpm
Rated Current mA(≤): 150-600mA
Rated Torque(Kg,cm): 0.1-9kg,cm
Stall/Maximum Torque (Kg,cm): 0.35-26kg,cm
Stall Current(A) : 0.8-2.6A

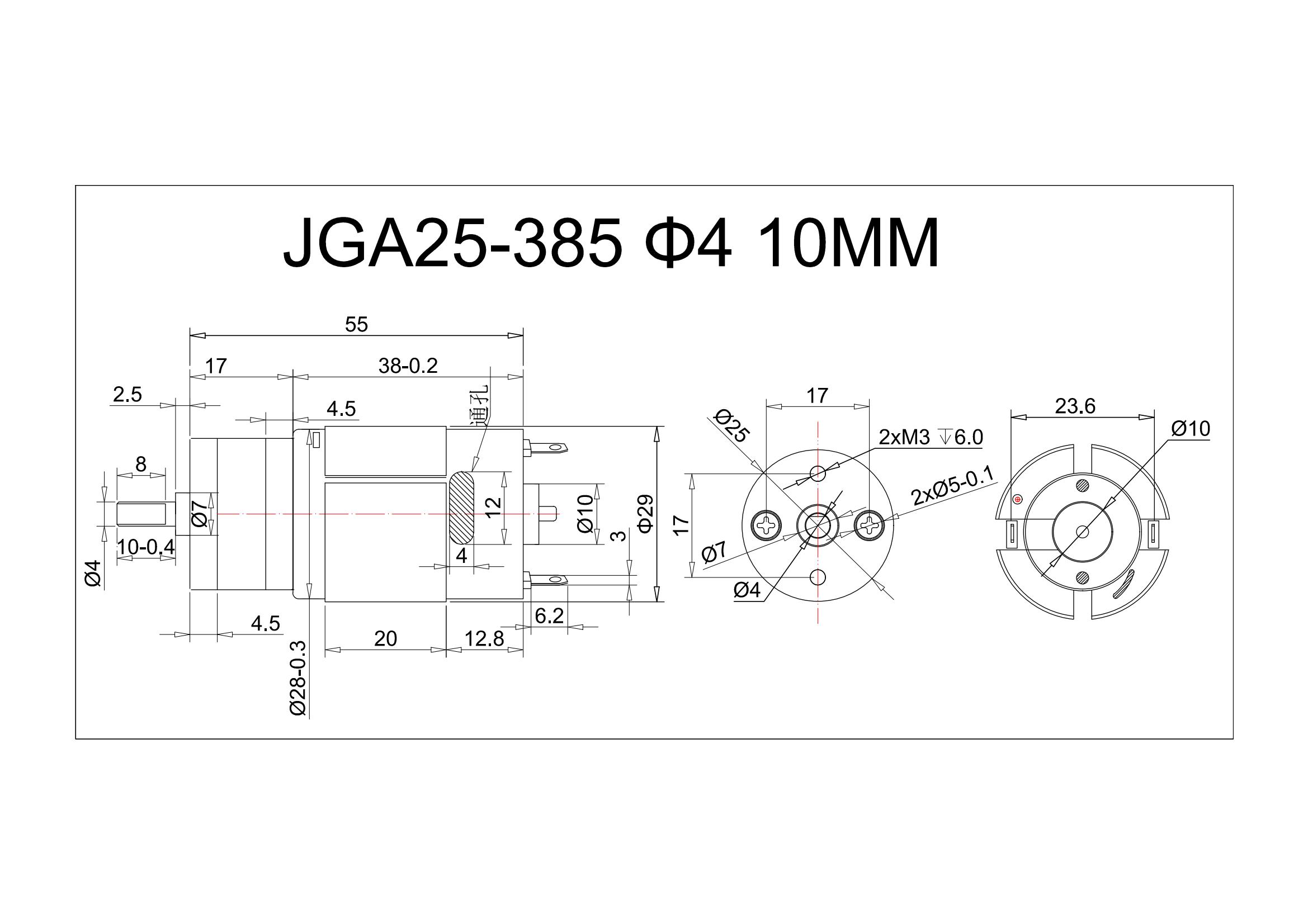

Shaft: 416 Steel, Φ4.0 Length 10mm ,
Gear: powder gear , copper gear

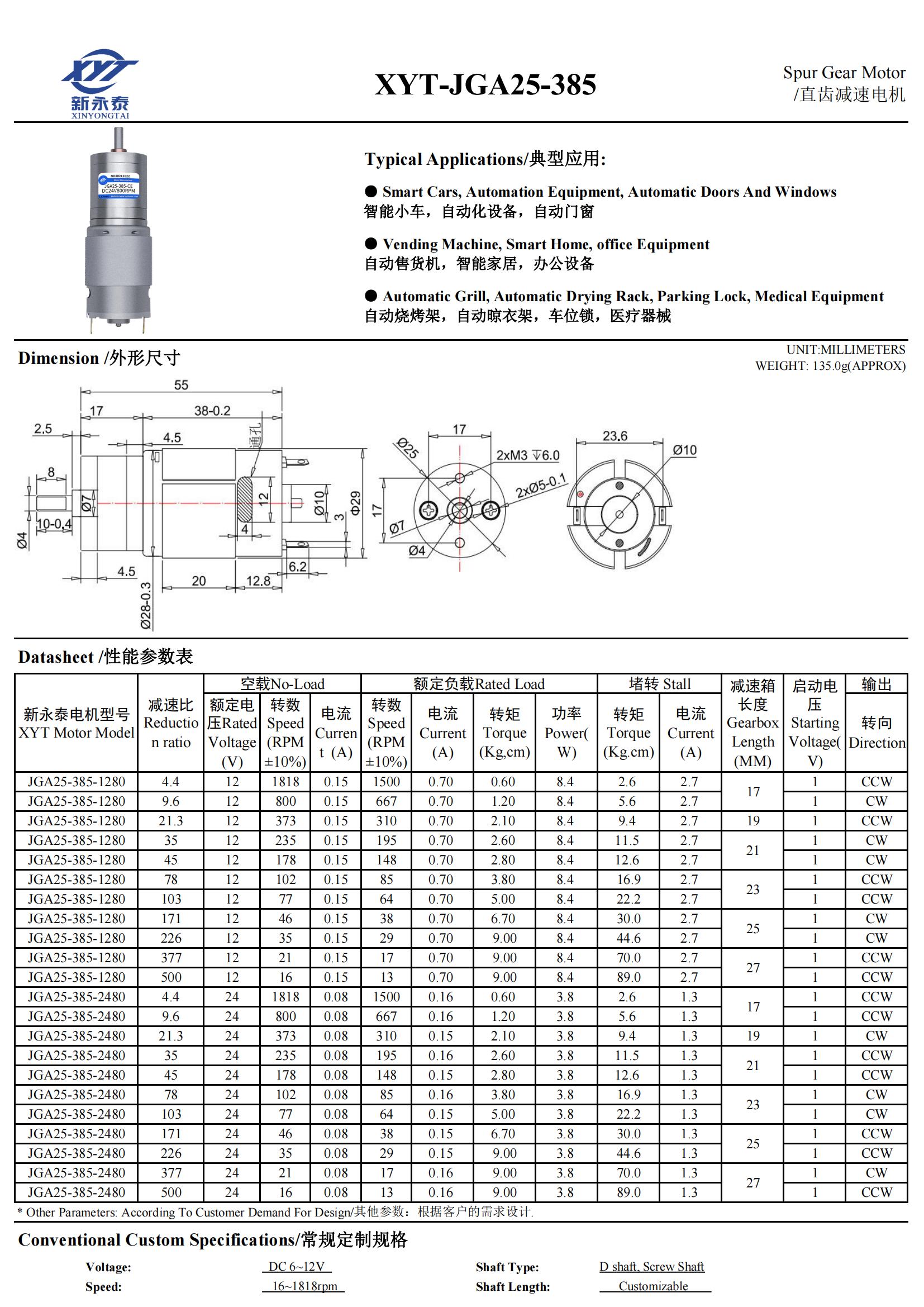

Download

    XYT Motor Model

    Reduction ratio

    No-Load

    Rated Load

    Stall

    Gearbox Length (MM)

    Weight(G)

    Output

    Starting Voltage(V)

    Rated Voltage (V)

    Speed (RPM ±10%)

    Current  (A)

    Speed (RPM ±10%)

    Current  (A)

    Torque (Kg,cm)

    Power(W)

    Torque (Kg.cm)

    Current  (A)

    Direction

    JGA25-385-1280

    4.4

    12

    1818

    0.15

    1500

    0.70

    0.60

    8.4

    2.6

    2.7

    CCW

    17

    135

    1

    JGA25-385-1280

    9.6

    12

    800

    0.15

    667

    0.70

    1.20

    8.4

    5.6

    2.7

    CW

    JGA25-385-1280

    21.3

    12

    373

    0.15

    310

    0.70

    2.10

    8.4

    9.4

    2.7

    CCW

    19

    JGA25-385-1280

    35

    12

    235

    0.15

    195

    0.70

    2.60

    8.4

    11.5

    2.7

    CW

    21

    JGA25-385-1280

    45

    12

    178

    0.15

    148

    0.70

    2.80

    8.4

    12.6

    2.7

    CW

    JGA25-385-1280

    78

    12

    102

    0.15

    85

    0.70

    3.80

    8.4

    16.9

    2.7

    CCW

    23

    JGA25-385-1280

    103

    12

    77

    0.15

    64

    0.70

    5.00

    8.4

    22.2

    2.7

    CCW

    JGA25-385-1280

    171

    12

    46

    0.15

    38

    0.70

    6.70

    8.4

    30.0

    2.7

    CW

    25

    JGA25-385-1280

    226

    12

    35

    0.15

    29

    0.70

    9.00

    8.4

    44.6

    2.7

    CW

    JGA25-385-1280

    377

    12

    21

    0.15

    17

    0.70

    9.00

    8.4

    70.0

    2.7

    CCW

    27

    JGA25-385-1280

    500

    12

    16

    0.15

    13

    0.70

    9.00

    8.4

    89.0

    2.7

    CCW

    XYT Motor Model

    Reduction ratio

    No-Load

    Rated Load

    Stall

    Gearbox Length (MM)

    Weight(G)

    Output

    Starting Voltage(V)

    Rated Voltage (V)

    Speed (RPM ±10%)

    Current  (A)

    Speed (RPM ±10%)

    Current  (A)

    Torque (Kg,cm)

    Power(W)

    Torque (Kg.cm)

    Current  (A)

    Direction

    JGA25-385-2480

    4.4

    24

    1818

    0.08

    1500

    0.16

    0.60

    3.8

    2.6

    1.3

    CCW

    17

    135

    1

    JGA25-385-2480

    9.6

    24

    800

    0.08

    667

    0.16

    1.20

    3.8

    5.6

    1.3

    CW

    JGA25-385-2480

    21.3

    24

    373

    0.08

    310

    0.15

    2.10

    3.8

    9.4

    1.3

    CCW

    19

    JGA25-385-2480

    35

    24

    235

    0.08

    195

    0.16

    2.60

    3.8

    11.5

    1.3

    CW

    21

    JGA25-385-2480

    45

    24

    178

    0.08

    148

    0.15

    2.80

    3.8

    12.6

    1.3

    CW

    JGA25-385-2480

    78

    24

    102

    0.08

    85

    0.16

    3.80

    3.8

    16.9

    1.3

    CCW

    23

    JGA25-385-2480

    103

    24

    77

    0.08

    64

    0.15

    5.00

    3.8

    22.2

    1.3

    CCW

    JGA25-385-2480

    171

    24

    46

    0.08

    38

    0.15

    6.70

    3.8

    30.0

    1.3

    CW

    25

    JGA25-385-2480

    226

    24

    35

    0.08

    29

    0.15

    9.00

    3.8

    44.6

    1.3

    CW

    JGA25-385-2480

    377

    24

    21

    0.08

    17

    0.16

    9.00

    3.8

    70.0

    1.3

    CCW

    27

    JGA25-385-2480

    500

    24

    16

    0.08

    13

    0.16

    9.00

    3.8

    89.0

    1.3

    CCW
    typical application
    Household appliances: Electric curtains, integrated stoves, coffee machines, smart toilets, robot vacuums, dishwashers, range hoods, smart door locks
    Personal care: hair curlers, massage instruments, electric hair clippers
    Office equipment: shredders, printers, projectors, banknote counting machines, coin counting machines
    Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs
    Industrial equipment: water and electrical valves, air switches, pumps, automatic door switches, automatic lubrication equipment
    Commercial equipment: vending machines, parking locks, ATM machines, smart lamps
    Robots: manipulators, drones, service robots
    Quantity: 120pcs/ctn
    Carton size: 38.5*27.5*24 cm
    Gross weight: 16.2 kg/ctn
    Net weight: 17.0 kg/ctn
    Single weight: 135g
    EPE Pearl Cotton Packaging
    Standard carton packaging
