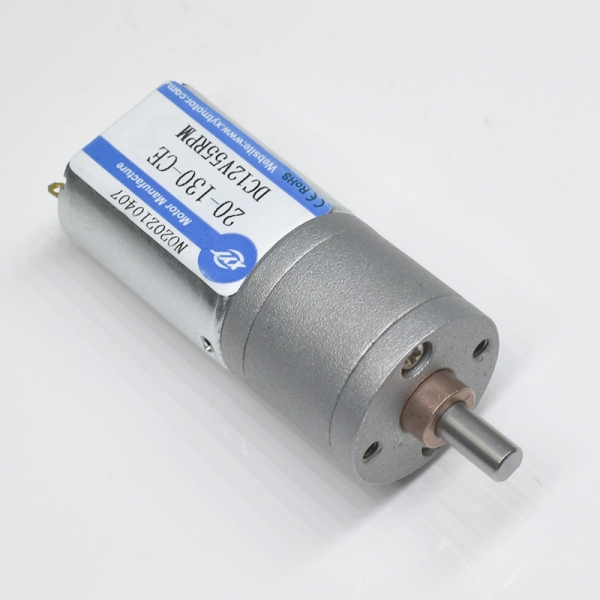

DC gear motor (spur gear)

JGA20-130

typical application
Household appliances: electric curtains, integrated stoves, coffee machines, smart toilets, sweeping robots, dishwashers, range hoods, smart door locks
Personal care: curling iron, massage equipment, electric hair clipper
Office equipment: paper shredders, printers, projectors, banknote counters, coin counters
Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs
Industrial equipment: water and electricity valves, air switches, pumps, automatic door switches, automatic lubrication equipment
Commercial equipment: vending machines, parking locks, ATM machines, smart lamps
Robots: manipulators, drones, service robots
Download
    新永泰电机型号XYT Motor Model 减速比Reduction ratio 空载No-Load 额定负载Rated Load 堵转 Stall 输出Output 启动电压Starting Voltage(V) 减速箱长度Gearbox Length (MM) 重量Weight(G)
    额定电压Rated Voltage (V) 转数Speed (RPM ±10%) 电流 Current  (A) 转数Speed (RPM ±10%) 电流 Current  (A) 转矩Torque (Kg,cm) 功率 Power(W) 转矩Torque (Kg.cm) 电流 Current  (A) 转向 Direction
    JGA20-130-12100 29 12 344 0.1 280 0.20 1.00 2.40 5.00 1.5 CCW 0.7 15.6 45
    56 12 178 0.09 144 0.21 1.50 2.40 6.70 1.5 CW 0.7 17.5
    72.9 12 137 0.08 112 0.20 1.80 2.40 8.30 1.5 CW 0.7 17.5
    182 12 55 0.08 45 0.21 2.10 2.40 9.60 1.5 CCW 0.7 19
    195 12 50 0.08 40 0.20 2.60 2.40 11.50 1.5 CCW 0.7 19
    270 12 37 0.08 30 0.21 2.90 2.40 13.00 1.5 CW 0.7 19
    349 12 28 0.08 22 0.20 3.10 2.40 14.00 1.5 CW 0.7 20.5
    488 12 20 0.08 16 0.20 3.40 2.40 15.30 1.5 CW 0.7 20.5
    新永泰电机型号XYT Motor Model 减速比Reduction ratio 空载No-Load 额定负载Rated Load 堵转 Stall 输出Output 启动电压Starting Voltage(V) 减速箱长度Gearbox Length (MM) 重量Weight(G)
    额定电压Rated Voltage (V) 转数Speed (RPM ±10%) 电流 Current  (A) 转数Speed (RPM ±10%) 电流 Current  (A) 转矩Torque (Kg,cm) 功率 Power(W) 转矩Torque (Kg.cm) 电流 Current  (A) 转向 Direction
    JGA20-130-0650 29 6 172 0.05 140 0.10 0.55 0.60 2.50 0.75 CCW 0.7 15.6 45
    56 6 89 0.045 70 0.11 0.70 0.60 3.30 0.75 CW 0.7 17.5
    72.9 6 68 0.04 55 0.105 0.90 0.60 4.10 0.75 CW 0.7 17.5
    182 6 27 0.04 23 0.11 1.10 0.60 4.80 0.75 CCW 0.7 19
    195 6 25 0.04 20 0.095 1.30 0.60 5.70 0.75 CCW 0.7 19
    270 6 18 0.04 15 0.11 1.50 0.60 6.60 0.75 CW 0.7 19
    349 6 14 0.04 11 0.10 1.60 0.60 7.00 0.75 CW 0.7 20.5
    488 6 10 0.04 8 0.10 1.70 0.60 7.60 0.75 CW 0.7 20.5

    Household appliances: electric curtains, integrated stoves, coffee machines, smart toilets, sweeping robots, dishwashers, range hoods, smart door locks

    Personal care: curling irons, massage equipment, electric hair clippers

    Office equipment: paper shredders, printers, projectors, banknote counters, coin counters

    Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs

    Industrial equipment: water and electricity valves, air switches, pumps, automatic door switches, automatic lubrication equipment

    Commercial equipment: vending machines, parking locks, ATM machines, smart lamps

    Robots: manipulators, drones, service robots

    Quantity: 192pcs/ctn Carton size: 38.5*27.5*24 cm Gross weight: 9.4 kg/ctn Net weight: 8.7 kg/ctn Unit weight: 45g
