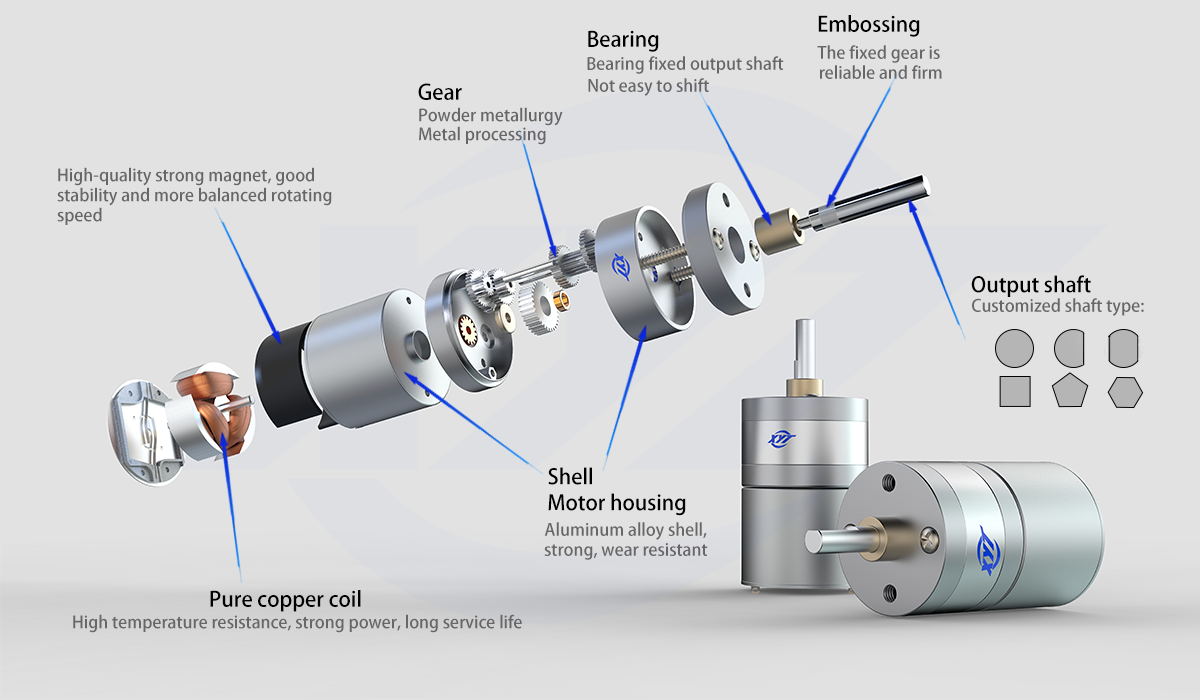

DC gear motor (spur gear)

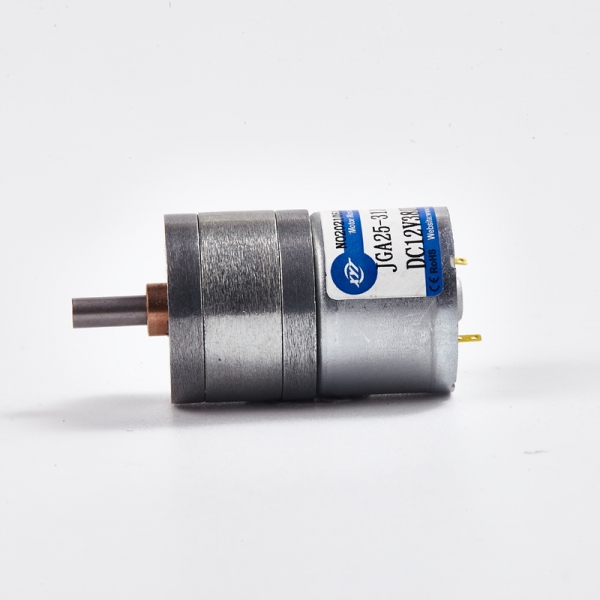

JGA25-310

typical application
Household appliances: electric curtains, integrated stoves, coffee machines, smart toilets, sweeping robots, dishwashers, range hoods, smart door locks
Personal care: curling iron, massage equipment, electric hair clipper
Office equipment: paper shredders, printers, projectors, banknote counters, coin counters
Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs
Industrial equipment: water and electricity valves, air switches, pumps, automatic door switches, automatic lubrication equipment
Commercial equipment: vending machines, parking locks, ATM machines, smart lamps
Robots: manipulators, drones, service robots
Download

    新永泰电机型号XYT Motor Model 减速比Reduction ratio 空载No-Load 额定负载Rated Load 堵转 Stall 减速箱长度Gearbox Length (MM)
    额定电压Rated Voltage (V) 转数Speed (RPM ±10%) 电流 Current  (A) 转数Speed (RPM ±10%) 电流 Current  (A) 转矩Torque (Kg,cm) 功率 Power(W) 转矩Torque (Kg.cm) 电流 Current  (A)
    JGA25-310-0640 4.4 6 900 0.045 700 0.1 0.03 0.2 0.1 0.4 17
    JGA25-310-0640 9.6 6 400 0.045 300 0.1 0.06 0.2 0.2 0.4
    JGA25-310-0640 21.3 6 180 0.045 140 0.1 0.15 0.2 0.5 0.4 19
    JGA25-310-0640 35 6 110 0.045 80 0.1 0.25 0.2 0.8 0.4 21
    JGA25-310-0640 45 6 85 0.045 65 0.1 0.30 0.2 1.0 0.4
    JGA25-310-0640 78 6 50 0.045 38 0.1 0.50 0.2 1.9 0.4 23
    JGA25-310-0640 103 6 39 0.045 30 0.1 0.70 0.2 2.5 0.4
    JGA25-310-0640 171 6 23 0.045 17 0.1 1.20 0.2 4.0 0.4 25
    JGA25-310-0640 226 6 17 0.045 13 0.1 1.50 0.2 5.3 0.4
    JGA25-310-0640 377 6 10 0.045 7 0.1 2.60 0.2 9.0 0.4 27
    JGA25-310-0640 500 6 8 0.045 6 0.1 3.50 0.2 12.0 0.4
    新永泰电机型号XYT Motor Model 减速比Reduction ratio 空载No-Load 额定负载Rated Load 堵转 Stall 减速箱长度Gearbox Length (MM)
    额定电压Rated Voltage (V) 转数Speed (RPM ±10%) 电流 Current  (A) 转数Speed (RPM ±10%) 电流 Current  (A) 转矩Torque (Kg,cm) 功率 Power(W) 转矩Torque (Kg.cm) 电流 Current  (A)
    JGA25-310-1280 4.4 12 1800 0.09 1400 0.2 0.06 0.9 0.2 0.7 17.0
    JGA25-310-1280 9.6 12 830 0.09 640 0.2 0.13 0.9 0.5 0.7
    JGA25-310-1280 21.3 12 375 0.09 290 0.2 0.30 0.9 1.0 0.7 19.0
    JGA25-310-1280 35 12 220 0.09 170 0.2 0.50 0.9 1.7 0.7 21.0
    JGA25-310-1280 45 12 177 0.09 135 0.2 0.60 0.8 2.1 0.7
    JGA25-310-1280 78 12 100 0.09 75 0.2 1.00 0.8 3.7 0.7 23.0
    JGA25-310-1280 103 12 77 0.09 60 0.2 1.40 0.9 4.9 0.7
    JGA25-310-1280 171 12 46 0.09 35 0.2 2.40 0.9 8.0 0.7 25.0
    JGA25-310-1280 226 12 35 0.09 27 0.2 3.20 0.9 10.7 0.7
    JGA25-310-1280 377 12 21 0.09 16 0.2 5.20 0.9 18.0 0.7 27.0
    JGA25-310-1280 500 12 16 0.09 12 0.2 7.00 0.9 20.0 0.7
    工程师建议 The engineer recommends：7kg以上不支持堵转 Blocked(Stall) rotor is not supported above 70kg

    Household appliances: electric curtains, integrated stoves, coffee machines, smart toilets, sweeping robots, dishwashers, range hoods, smart door locks

    Personal care: curling irons, massage equipment, electric hair clippers

    Office equipment: paper shredders, printers, projectors, banknote counters, coin counters

    Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs

    Industrial equipment: water and electricity valves, air switches, pumps, automatic door switches, automatic lubrication equipment

    Commercial equipment: vending machines, parking locks, ATM machines, smart lamps

    Robots: manipulators, drones, service robots

    Quantity: 100pcs/ctn Carton size: 38.5*27.5*24 cm Gross weight: 6.5 kg/ctn Net weight: 5.8 kg/ctn Unit weight: 58g
