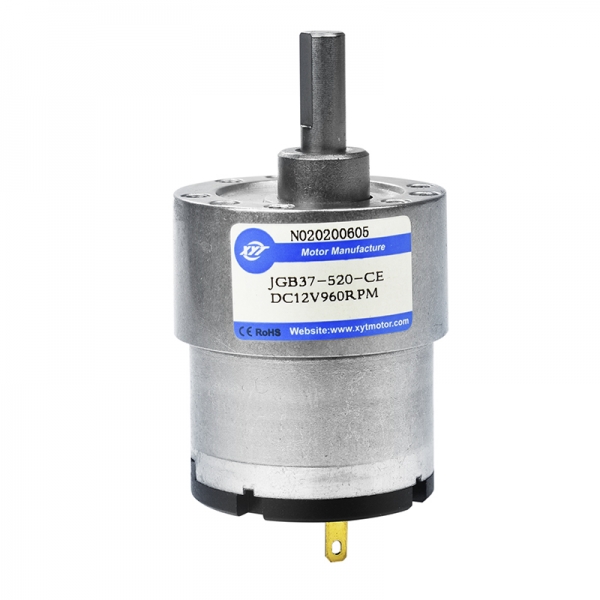

DC gear motor (spur gear)

JGB37-520 Φ6 15MM

Rated Voltage: 6-24V
Reduction Ratio: 6.25-810I
No-load speed(RPM): 7~1600rpm
No-Load Current mA(≤): 50-200mA
Rated Speed(RPM): 5.6-1200rpm
Rated Current mA(≤): 150-650mA
Rated Torque(Kg,cm): 0.17-21kg,cm
Stall/Maximum Torque (Kg,cm): 0.6-93kg,cm
Stall Current(A) : 0.6-2.4A
Shaft: 416 Steel, Φ6.0 Length 15mm ,

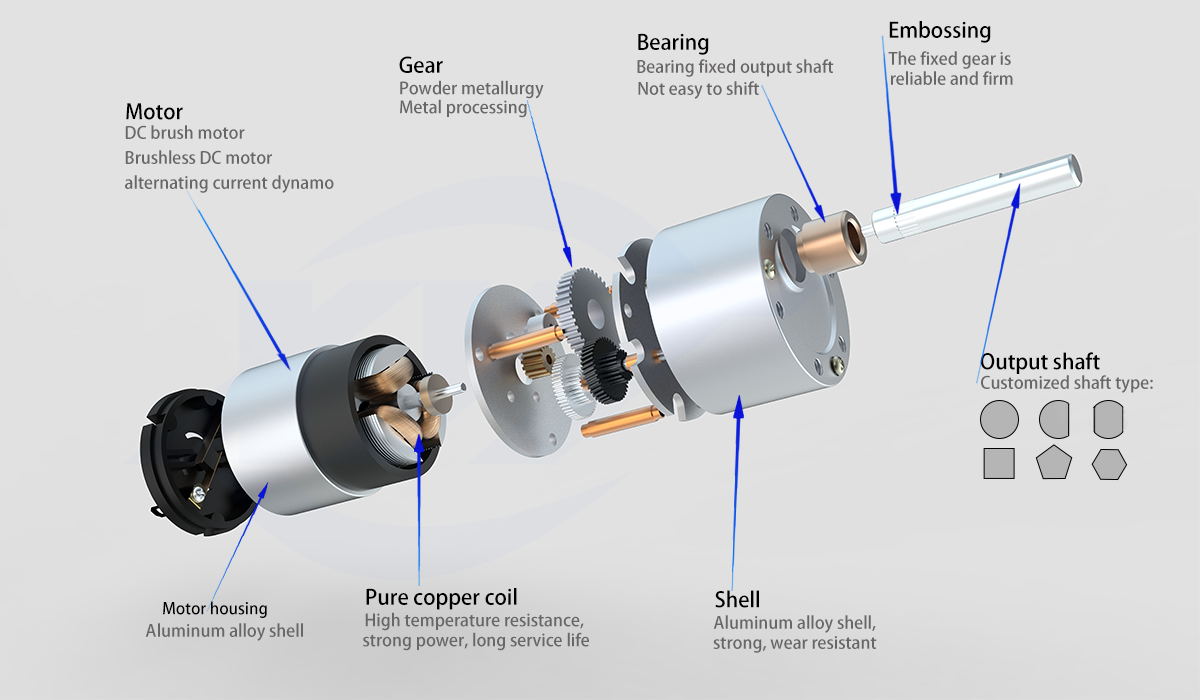

Gear: powder gear , copper gear
Download


    新永泰电机型号XYT Motor Model 减速比Reduction ratio 空载No-Load 额定负载Rated Load 堵转 Stall 减速箱长度Gearbox Length (MM)
    额定电压Rated Voltage (V) 转数Speed (RPM ±10%) 电流 Current (A) 转数Speed (RPM ±10%) 电流 Current (A) 转矩Torque (Kg,cm) 功率 Power(W) 转矩Torque (Kg.cm) 电流 Current (A)
    JGB37-520-0680 6.25 6 1280 0.3 896 0.45 0.07 1.0 0.3 2.0 19
    JGB37-520-0680 10 6 800 0.3 640 0.45 0.10 1.0 0.4 2.0
    JGB37-520-0680 18.8 6 425 0.3 340 0.45 0.18 1.0 0.7 2.0 22
    JGB37-520-0680 30 6 266 0.2 212 0.45 0.30 1.0 1.2 2.0
    JGB37-520-0680 56 6 142 0.2 113 0.45 0.56 1.0 2.2 2.0 24
    JGB37-520-0680 90 6 88 0.1 70 0.45 0.90 1.0 3.6 2.0
    JGB37-520-0680 131 6 61 0.1 48 0.45 1.30 1.0 5.2 2.0 26.5
    JGB37-520-0680 169 6 47 0.1 37 0.45 1.68 1.0 6.7 2.0
    JGB37-520-0680 270 6 29 0.1 23 0.45 2.70 1.0 10.0 2.0
    JGB37-520-0680 506 6 16 0.1 12 0.45 5.00 1.0 20.0 2.0 29
    JGB37-520-0680 810 6 10 0.1 8 0.45 8.00 1.0 32.0 2.0
    新永泰电机型号XYT Motor Model 减速比Reduction ratio 空载No-Load 额定负载Rated Load 堵转 Stall 减速箱长度Gearbox Length (MM)
    额定电压Rated Voltage (V) 转数Speed (RPM ±10%) 电流 Current (A) 转数Speed (RPM ±10%) 电流 Current (A) 转矩Torque (Kg,cm) 功率 Power(W) 转矩Torque (Kg.cm) 电流 Current (A)
    JGB37-520-1260 6.25 12 960 0.1 672 0.20 0.10 0.8 0.4 1.2 19
    JGB37-520-1260 10 12 600 0.1 480 0.20 0.15 0.8 0.6 1.2
    JGB37-520-1260 18.8 12 319 0.1 255 0.17 0.28 0.8 1.1 1.2 22
    JGB37-520-1260 30 12 200 0.06 160 0.15 0.45 0.8 1.8 1.2
    JGB37-520-1260 56 12 107 0.06 85 0.15 0.84 0.8 3.0 1.2 24
    JGB37-520-1260 90 12 66 0.06 52 0.10 1.35 0.8 5.0 1.2
    JGB37-520-1260 131 12 45 0.06 36 0.10 1.90 0.8 7.0 1.2 26.5
    JGB37-520-1260 169 12 35 0.05 28 0.10 2.50 0.8 10.0 1.2
    JGB37-520-1260 270 12 22 0.05 18 0.08 4.00 0.8 16.0 1.2
    JGB37-520-1260 506 12 12 0.05 10 0.08 7.50 0.8 30.0 1.2 29
    JGB37-520-1260 810 12 7 0.05 5.6 0.08 12.00 0.8 48.0 1.2
    新永泰电机型号XYT Motor Model 减速比Reduction ratio 空载No-Load 额定负载Rated Load 堵转 Stall 减速箱长度Gearbox Length (MM)
    额定电压Rated Voltage (V) 转数Speed (RPM ±10%) 电流 Current (A) 转数Speed (RPM ±10%) 电流 Current (A) 转矩Torque (Kg,cm) 功率 Power(W) 转矩Torque (Kg.cm) 电流 Current (A)
    JGB37-520-2460 6.25 24 960 0.035 672 0.15 0.15 1.0 0.6 0.8 19
    JGB37-520-2460 10 24 600 0.035 480 0.15 0.20 1.0 0.8 0.8
    JGB37-520-2460 18.8 24 315 0.035 255 0.15 0.37 1.0 0.2 0.8 22
    JGB37-520-2460 30 24 200 0.035 160 0.12 0.60 1.0 2.4 0.8
    JGB37-520-2460 56 24 107 0.035 85 0.12 1.00 0.9 4.0 0.8 24
    JGB37-520-2460 90 24 67 0.035 52 0.10 1.80 1.0 7.0 0.8
    JGB37-520-2460 131 24 46 0.035 36 0.08 2.50 1.0 10.0 0.8 26.5
    JGB37-520-2460 169 24 36 0.035 28 0.06 3.30 1.0 13.0 0.8
    JGB37-520-2460 270 24 23 0.035 18 0.05 5.00 1.0 20.0 0.8
    JGB37-520-2460 506 24 13 0.035 10 0.04 10.00 1.0 40.0 0.8 29
    JGB37-520-2460 810 24 7 0.035 5.6 0.04 16.00 1.0 64.0 0.8
    工程师建议 The engineer recommends：270速比以上不支持堵转 Blocked(Stall) rotor is not supported above 270 ratio
    新永泰电机型号XYT Motor Model 减速比Reduction ratio 空载No-Load 额定负载Rated Load 堵转 Stall 减速箱长度Gearbox Length (MM)
    额定电压Rated Voltage (V) 转数Speed (RPM ±10%) 电流 Current (A) 转数Speed (RPM ±10%) 电流 Current (A) 转矩Torque (Kg,cm) 功率 Power(W) 转矩Torque (Kg.cm) 电流 Current (A)
    JGB37-520-0680 6.25 6 1280 0.3 896 0.45 0.07 1.0 0.3 2.0 19
    JGB37-520-0680 10 6 800 0.3 640 0.45 0.10 1.0 0.4 2.0
    JGB37-520-0680 18.8 6 425 0.3 340 0.45 0.18 1.0 0.7 2.0 22
    JGB37-520-0680 30 6 266 0.2 212 0.45 0.30 1.0 1.2 2.0
    JGB37-520-0680 56 6 142 0.2 113 0.45 0.56 1.0 2.2 2.0 24
    JGB37-520-0680 90 6 88 0.1 70 0.45 0.90 1.0 3.6 2.0
    JGB37-520-0680 131 6 61 0.1 48 0.45 1.30 1.0 5.2 2.0 26.5
    JGB37-520-0680 169 6 47 0.1 37 0.45 1.68 1.0 6.7 2.0
    JGB37-520-0680 270 6 29 0.1 23 0.45 2.70 1.0 10.0 2.0
    JGB37-520-0680 506 6 16 0.1 12 0.45 5.00 1.0 20.0 2.0 29
    JGB37-520-0680 810 6 10 0.1 8 0.45 8.00 1.0 32.0 2.0
    新永泰电机型号XYT Motor Model 减速比Reduction ratio 空载No-Load 额定负载Rated Load 堵转 Stall 减速箱长度Gearbox Length (MM)
    额定电压Rated Voltage (V) 转数Speed (RPM ±10%) 电流 Current (A) 转数Speed (RPM ±10%) 电流 Current (A) 转矩Torque (Kg,cm) 功率 Power(W) 转矩Torque (Kg.cm) 电流 Current (A)
    JGB37-520-1260 6.25 12 960 0.1 672 0.20 0.10 0.8 0.4 1.2 19
    JGB37-520-1260 10 12 600 0.1 480 0.20 0.15 0.8 0.6 1.2
    JGB37-520-1260 18.8 12 319 0.1 255 0.17 0.28 0.8 1.1 1.2 22
    JGB37-520-1260 30 12 200 0.06 160 0.15 0.45 0.8 1.8 1.2
    JGB37-520-1260 56 12 107 0.06 85 0.15 0.84 0.8 3.0 1.2 24
    JGB37-520-1260 90 12 66 0.06 52 0.10 1.35 0.8 5.0 1.2
    JGB37-520-1260 131 12 45 0.06 36 0.10 1.90 0.8 7.0 1.2 26.5
    JGB37-520-1260 169 12 35 0.05 28 0.10 2.50 0.8 10.0 1.2
    JGB37-520-1260 270 12 22 0.05 18 0.08 4.00 0.8 16.0 1.2
    JGB37-520-1260 506 12 12 0.05 10 0.08 7.50 0.8 30.0 1.2 29
    JGB37-520-1260 810 12 7 0.05 5.6 0.08 12.00 0.8 48.0 1.2
    新永泰电机型号XYT Motor Model 减速比Reduction ratio 空载No-Load 额定负载Rated Load 堵转 Stall 减速箱长度Gearbox Length (MM)
    额定电压Rated Voltage (V) 转数Speed (RPM ±10%) 电流 Current (A) 转数Speed (RPM ±10%) 电流 Current (A) 转矩Torque (Kg,cm) 功率 Power(W) 转矩Torque (Kg.cm) 电流 Current (A)
    JGB37-520-2460 6.25 24 960 0.035 672 0.15 0.15 1.0 0.6 0.8 19
    JGB37-520-2460 10 24 600 0.035 480 0.15 0.20 1.0 0.8 0.8
    JGB37-520-2460 18.8 24 315 0.035 255 0.15 0.37 1.0 0.2 0.8 22
    JGB37-520-2460 30 24 200 0.035 160 0.12 0.60 1.0 2.4 0.8
    JGB37-520-2460 56 24 107 0.035 85 0.12 1.00 0.9 4.0 0.8 24
    JGB37-520-2460 90 24 67 0.035 52 0.10 1.80 1.0 7.0 0.8
    JGB37-520-2460 131 24 46 0.035 36 0.08 2.50 1.0 10.0 0.8 26.5
    JGB37-520-2460 169 24 36 0.035 28 0.06 3.30 1.0 13.0 0.8
    JGB37-520-2460 270 24 23 0.035 18 0.05 5.00 1.0 20.0 0.8
    JGB37-520-2460 506 24 13 0.035 10 0.04 10.00 1.0 40.0 0.8 29
    JGB37-520-2460 810 24 7 0.035 5.6 0.04 16.00 1.0 64.0 0.8
    工程师建议 The engineer recommends：270速比以上不支持堵转 Blocked(Stall) rotor is not supported above 270 ratio

    Household appliances: electric curtains, integrated stoves, coffee machines, smart toilets, sweeping robots, dishwashers, range hoods, smart door locks

    Personal care: curling irons, massage equipment, electric hair clippers

    Office equipment: paper shredders, printers, projectors, banknote counters, coin counters

    Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs

    Industrial equipment: water and electricity valves, air switches, pumps, automatic door switches, automatic lubrication equipment

    Commercial equipment: vending machines, parking locks, ATM machines, smart lamps

    Robots: manipulators, drones, service robots

    Quantity: 100pcs/ctn Carton size: 38.5*27.5*24 cm Gross weight: 16.2 kg/ctn Net weight: 15.5 kg/ctn Unit weight: 155g
