DC gear motor (spur gear)

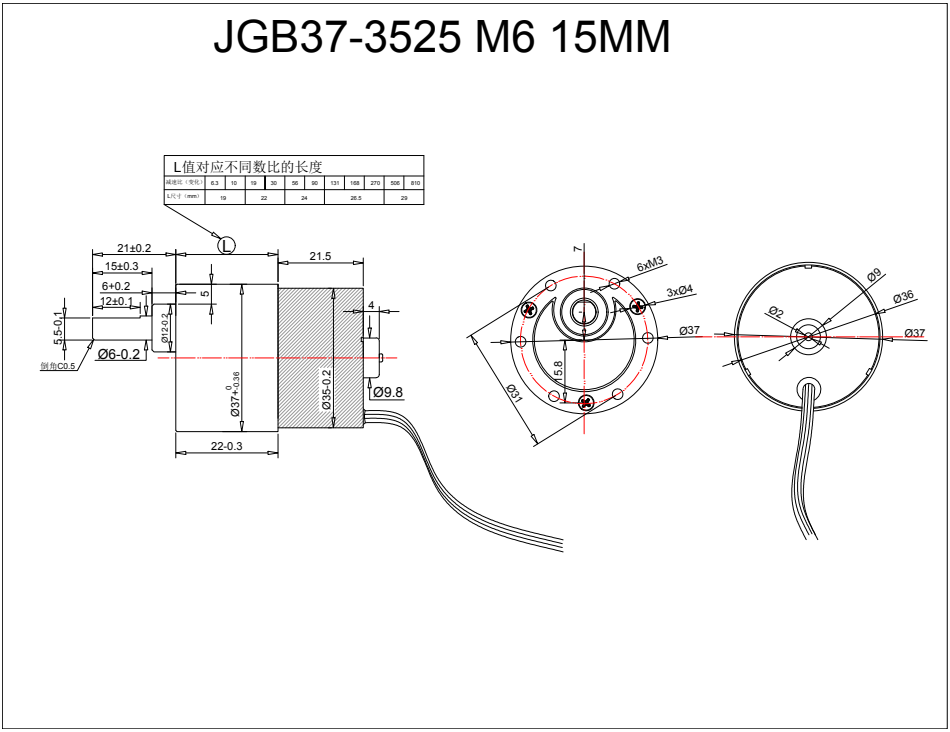

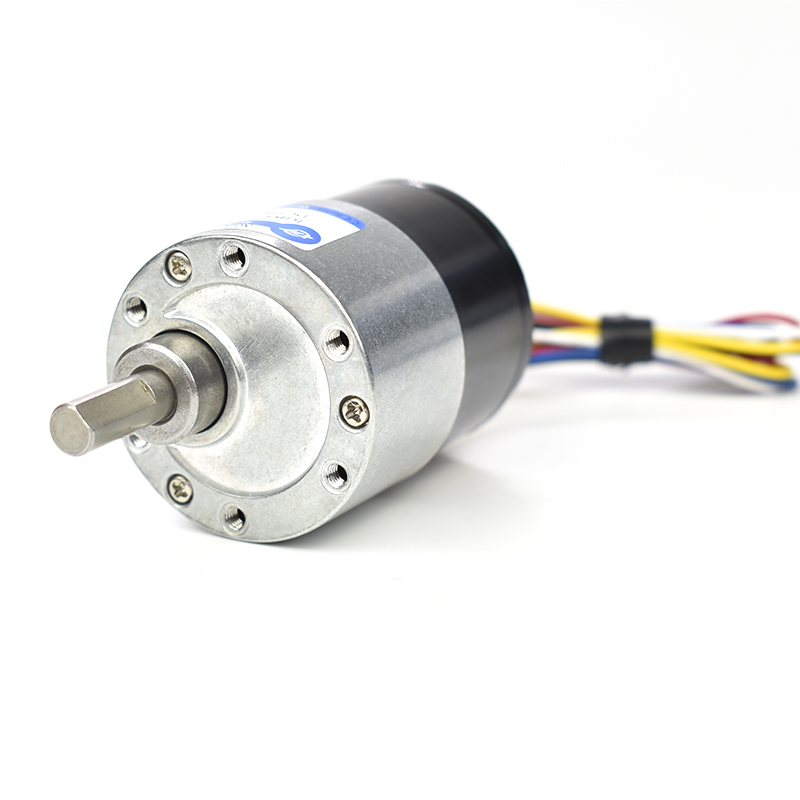

JGB37-3525

Download

    新永泰电机型号XYT Motor Model 减速比Reduction ratio 空载No-Load 额定负载Rated Load 堵转 Stall 减速箱长度Gearbox Length (MM)
    额定电压Rated Voltage (V) 转数Speed (RPM ±10%) 电流 Current (A) 转数Speed (RPM ±10%) 电流 Current (A) 转矩Torque (Kg,cm) 功率 Power(W) 转矩Torque (Kg.cm) 电流 Current (A)
    JGB37-3525-1260 6.25 12 960 0.07 685 0.8 0.80 5.74 1.5 1.8 19
    JGB37-3525-1260 10 12 600 0.07 428 0.8 1.20 5.38 2.5 1.8
    JGB37-3525-1260 18.8 12 320 0.07 228 0.8 2.35 5.61 4.7 1.8 22
    JGB37-3525-1260 30 12 200 0.07 142 0.8 3.60 5.35 7.5 1.8
    JGB37-3525-1260 56 12 107 0.07 76 0.8 6.80 5.41 12.5 1.8 24
    JGB37-3525-1260 90 12 66 0.07 50 0.8 10.90 5.71 22.5 1.8
    JGB37-3525-1260 131 12 45 0.07 32 0.8 15.90 5.33 32 1.8 26.5
    JGB37-3525-1260 169 12 35 0.07 25 0.8 20.40 5.34 最大负载35kg,禁止堵转
    JGB37-3525-1260 270 12 22 0.07 16 0.8 32.70 5.48
    JGB37-3525-1260 506 12 12 0.07 9 0.8 35.00 3.30 29
    JGB37-3525-1260 810 12 7 0.07 6 0.8 35.00 2.20
    新永泰电机型号XYT Motor Model 减速比Reduction ratio 空载No-Load 额定负载Rated Load 堵转 Stall 减速箱长度Gearbox Length (MM)
    额定电压Rated Voltage (V) 转数Speed (RPM ±10%) 电流 Current (A) 转数Speed (RPM ±10%) 电流 Current (A) 转矩Torque (Kg,cm) 功率 Power(W) 转矩Torque (Kg.cm) 电流 Current (A)
    JGB37-3525-2460 6.25 24 960 0.13 685 0.4 0.45 3.23 1.2 1.3 19
    JGB37-3525-2460 10 24 600 0.13 428 0.4 0.75 3.36 2 1.3
    JGB37-3525-2460 18.8 24 320 0.13 228 0.4 1.30 3.10 3.8 1.3 22
    JGB37-3525-2460 30 24 200 0.13 142 0.4 1.80 2.68 5.6 1.3
    JGB37-3525-2460 56 24 107 0.13 76 0.4 4.00 3.18 11.5 1.3 24
    JGB37-3525-2460 90 24 66 0.13 50 0.4 6.40 3.35 18 1.3
    JGB37-3525-2460 131 24 45 0.13 32 0.4 9.30 3.12 26.5 1.3 26.5
    JGB37-3525-2460 169 24 35 0.13 25 0.4 12.00 3.14 最大负载35kg,禁止堵转
    JGB37-3525-2460 270 24 22 0.13 16 0.4 19.00 3.18
    JGB37-3525-2460 506 24 12 0.13 9 0.4 35.00 3.30 29
    JGB37-3525-2460 810 24 7 0.13 6 0.4 35.00 2.20
    工程师建议 The engineer recommends:35kg以上不支持堵转 Blocked(Stall) rotor is not supported above 35kg
    新永泰电机型号XYT Motor Model 减速比Reduction ratio 空载No-Load 额定负载Rated Load 堵转 Stall 减速箱长度Gearbox Length (MM)
    额定电压Rated Voltage (V) 转数Speed (RPM ±10%) 电流 Current (A) 转数Speed (RPM ±10%) 电流 Current (A) 转矩Torque (Kg,cm) 功率 Power(W) 转矩Torque (Kg.cm) 电流 Current (A)
    JGB37-3525-1260 6.25 12 960 0.07 685 0.8 0.80 5.74 1.5 1.8 19
    JGB37-3525-1260 10 12 600 0.07 428 0.8 1.20 5.38 2.5 1.8
    JGB37-3525-1260 18.8 12 320 0.07 228 0.8 2.35 5.61 4.7 1.8 22
    JGB37-3525-1260 30 12 200 0.07 142 0.8 3.60 5.35 7.5 1.8
    JGB37-3525-1260 56 12 107 0.07 76 0.8 6.80 5.41 12.5 1.8 24
    JGB37-3525-1260 90 12 66 0.07 50 0.8 10.90 5.71 22.5 1.8
    JGB37-3525-1260 131 12 45 0.07 32 0.8 15.90 5.33 32 1.8 26.5
    JGB37-3525-1260 169 12 35 0.07 25 0.8 20.40 5.34 最大负载35kg,禁止堵转
    JGB37-3525-1260 270 12 22 0.07 16 0.8 32.70 5.48
    JGB37-3525-1260 506 12 12 0.07 9 0.8 35.00 3.30 29
    JGB37-3525-1260 810 12 7 0.07 6 0.8 35.00 2.20
    新永泰电机型号XYT Motor Model 减速比Reduction ratio 空载No-Load 额定负载Rated Load 堵转 Stall 减速箱长度Gearbox Length (MM)
    额定电压Rated Voltage (V) 转数Speed (RPM ±10%) 电流 Current (A) 转数Speed (RPM ±10%) 电流 Current (A) 转矩Torque (Kg,cm) 功率 Power(W) 转矩Torque (Kg.cm) 电流 Current (A)
    JGB37-3525-2460 6.25 24 960 0.13 685 0.4 0.45 3.23 1.2 1.3 19
    JGB37-3525-2460 10 24 600 0.13 428 0.4 0.75 3.36 2 1.3
    JGB37-3525-2460 18.8 24 320 0.13 228 0.4 1.30 3.10 3.8 1.3 22
    JGB37-3525-2460 30 24 200 0.13 142 0.4 1.80 2.68 5.6 1.3
    JGB37-3525-2460 56 24 107 0.13 76 0.4 4.00 3.18 11.5 1.3 24
    JGB37-3525-2460 90 24 66 0.13 50 0.4 6.40 3.35 18 1.3
    JGB37-3525-2460 131 24 45 0.13 32 0.4 9.30 3.12 26.5 1.3 26.5
    JGB37-3525-2460 169 24 35 0.13 25 0.4 12.00 3.14 最大负载35kg,禁止堵转
    JGB37-3525-2460 270 24 22 0.13 16 0.4 19.00 3.18
    JGB37-3525-2460 506 24 12 0.13 9 0.4 35.00 3.30 29
    JGB37-3525-2460 810 24 7 0.13 6 0.4 35.00 2.20
    工程师建议 The engineer recommends:35kg以上不支持堵转 Blocked(Stall) rotor is not supported above 35kg

    Household appliances: electric curtains, integrated stoves, coffee machines, smart toilets, sweeping robots, dishwashers, range hoods, smart door locks

    Personal care: curling irons, massage equipment, electric hair clippers

    Office equipment: paper shredders, printers, projectors, banknote counters, coin counters

    Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs

    Industrial equipment: water and electricity valves, air switches, pumps, automatic door switches, automatic lubrication equipment

    Commercial equipment: vending machines, parking locks, ATM machines, smart lamps

    Robots: manipulators, drones, service robots

    Quantity: 100pcs/ctn Carton size: 38.5*27.5*24 cm Gross weight: 18.7 kg/ctn Net weight: 18.0 kg/ctn Unit weight: 180g
