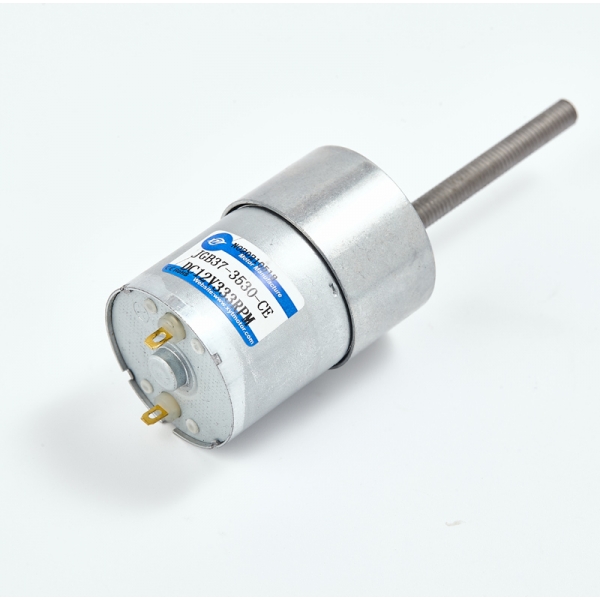

DC gear motor (spur gear)

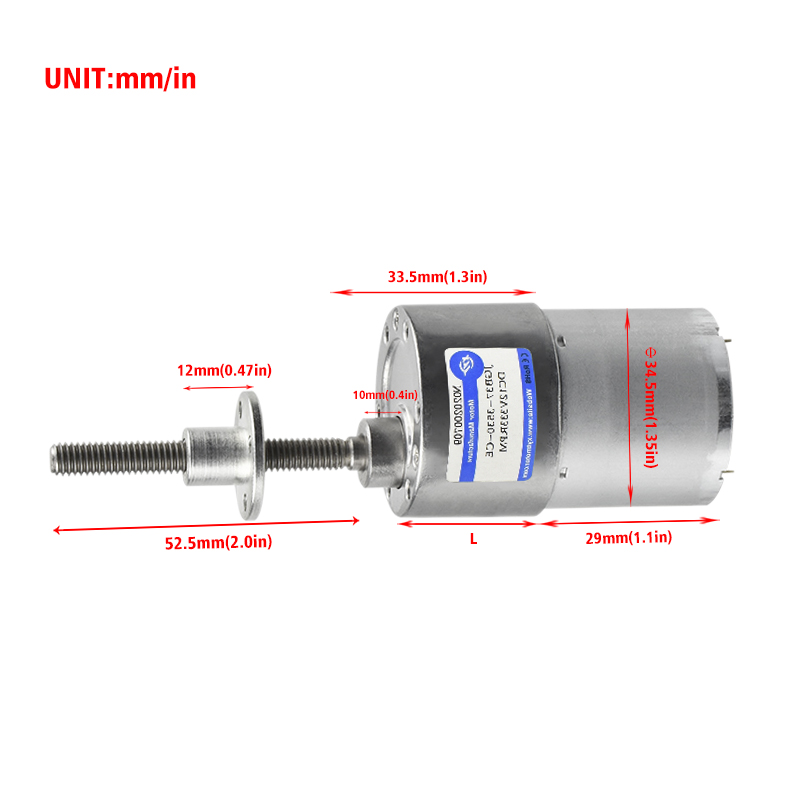

JGB37-3530 M6 52MM

Quantity: 100pcs/ctn
Carton size: 38.5*27.5*24 cm
Gross weight: 19.4 kg/ctn
Net weight: 18.7 kg/ctn
Single weight: 187g
Download

    新永泰电机型号XYT Motor Model 减速比Reduction ratio 空载No-Load 额定负载Rated Load 堵转 Stall 减速箱长度Gearbox Length (MM)
    额定电压Rated Voltage (V) 转数Speed (RPM ±10%) 电流 Current (A) 转数Speed (RPM ±10%) 电流 Current (A) 转矩Torque (Kg,cm) 功率 Power(W) 转矩Torque (Kg.cm) 电流 Current (A)
    JGB37-3530-1260 6.25 12 960 0.05 738 0.45 0.35 2.70 1.4 2.3 19
    JGB37-3530-1260 10 12 600 0.05 462 0.45 0.50 2.42 2.3 2.3
    JGB37-3530-1260 18.8 12 320 0.05 246 0.45 1.00 2.58 4.3 2.3 22
    JGB37-3530-1260 30 12 200 0.05 154 0.45 1.60 2.58 6.9 2.3
    JGB37-3530-1260 56 12 107 0.05 82 0.45 2.90 2.49 12.9 2.3 24
    JGB37-3530-1260 90 12 66 0.05 51 0.45 4.70 2.51 20.7 2.3
    JGB37-3530-1260 131 12 45 0.05 35 0.45 6.80 2.49 30.2 2.3 26.5
    JGB37-3530-1260 169 12 35 0.05 27 0.45 8.80 2.49 38.8 2.3
    JGB37-3530-1260 270 12 22 0.05 17 0.45 14.00 2.49 Max load 35kg , Forbid Stall
    JGB37-3530-1260 506 12 12 0.05 9 0.45 26.00 2.45 29
    JGB37-3530-1260 810 12 7 0.05 6 0.45 42.00 2.64
    新永泰电机型号XYT Motor Model 减速比Reduction ratio 空载No-Load 额定负载Rated Load 堵转 Stall 减速箱长度Gearbox Length (MM)
    额定电压Rated Voltage (V) 转数Speed (RPM ±10%) 电流 Current (A) 转数Speed (RPM ±10%) 电流 Current (A) 转矩Torque (Kg,cm) 功率 Power(W) 转矩Torque (Kg.cm) 电流 Current (A)
    JGB37-3530-2460 6.25 24 960 0.04 738 0.3 0.30 2.32 1.4 2.3 19
    JGB37-3530-2460 10 24 600 0.04 462 0.3 0.50 2.42 2.3 2.3
    JGB37-3530-2460 18.8 24 320 0.04 246 0.3 1.00 2.58 4.3 2.3 22
    JGB37-3530-2460 30 24 200 0.04 154 0.3 1.60 2.58 6.9 2.3
    JGB37-3530-2460 56 24 107 0.04 82 0.3 2.90 2.49 12.9 2.3 24
    JGB37-3530-2460 90 24 66 0.04 51 0.3 4.70 2.51 20.7 2.3
    JGB37-3530-2460 131 24 45 0.04 35 0.3 6.80 2.49 30.2 2.3 26.5
    JGB37-3530-2460 169 24 35 0.04 27 0.3 8.80 2.49 38.8 2.3
    JGB37-3530-2460 270 24 22 0.04 17 0.3 14.00 2.49 Max load 35kg , Forbid Stall
    JGB37-3530-2460 506 24 12 0.04 9 0.3 26.00 2.45 29
    JGB37-3530-2460 810 24 7 0.04 6 0.3 42.00 2.64
    工程师建议 The engineer recommends：35kg以上不支持堵转 Blocked(Stall) rotor is not supported above 35kg
    新永泰电机型号XYT Motor Model 减速比Reduction ratio 空载No-Load 额定负载Rated Load 堵转 Stall 减速箱长度Gearbox Length (MM)
    额定电压Rated Voltage (V) 转数Speed (RPM ±10%) 电流 Current (A) 转数Speed (RPM ±10%) 电流 Current (A) 转矩Torque (Kg,cm) 功率 Power(W) 转矩Torque (Kg.cm) 电流 Current (A)
    JGB37-3530-1260 6.25 12 960 0.05 738 0.45 0.35 2.70 1.4 2.3 19
    JGB37-3530-1260 10 12 600 0.05 462 0.45 0.50 2.42 2.3 2.3
    JGB37-3530-1260 18.8 12 320 0.05 246 0.45 1.00 2.58 4.3 2.3 22
    JGB37-3530-1260 30 12 200 0.05 154 0.45 1.60 2.58 6.9 2.3
    JGB37-3530-1260 56 12 107 0.05 82 0.45 2.90 2.49 12.9 2.3 24
    JGB37-3530-1260 90 12 66 0.05 51 0.45 4.70 2.51 20.7 2.3
    JGB37-3530-1260 131 12 45 0.05 35 0.45 6.80 2.49 30.2 2.3 26.5
    JGB37-3530-1260 169 12 35 0.05 27 0.45 8.80 2.49 38.8 2.3
    JGB37-3530-1260 270 12 22 0.05 17 0.45 14.00 2.49 Max load 35kg , Forbid Stall
    JGB37-3530-1260 506 12 12 0.05 9 0.45 26.00 2.45 29
    JGB37-3530-1260 810 12 7 0.05 6 0.45 42.00 2.64
    新永泰电机型号XYT Motor Model 减速比Reduction ratio 空载No-Load 额定负载Rated Load 堵转 Stall 减速箱长度Gearbox Length (MM)
    额定电压Rated Voltage (V) 转数Speed (RPM ±10%) 电流 Current (A) 转数Speed (RPM ±10%) 电流 Current (A) 转矩Torque (Kg,cm) 功率 Power(W) 转矩Torque (Kg.cm) 电流 Current (A)
    JGB37-3530-2460 6.25 24 960 0.04 738 0.3 0.30 2.32 1.4 2.3 19
    JGB37-3530-2460 10 24 600 0.04 462 0.3 0.50 2.42 2.3 2.3
    JGB37-3530-2460 18.8 24 320 0.04 246 0.3 1.00 2.58 4.3 2.3 22
    JGB37-3530-2460 30 24 200 0.04 154 0.3 1.60 2.58 6.9 2.3
    JGB37-3530-2460 56 24 107 0.04 82 0.3 2.90 2.49 12.9 2.3 24
    JGB37-3530-2460 90 24 66 0.04 51 0.3 4.70 2.51 20.7 2.3
    JGB37-3530-2460 131 24 45 0.04 35 0.3 6.80 2.49 30.2 2.3 26.5
    JGB37-3530-2460 169 24 35 0.04 27 0.3 8.80 2.49 38.8 2.3
    JGB37-3530-2460 270 24 22 0.04 17 0.3 14.00 2.49 Max load 35kg , Forbid Stall
    JGB37-3530-2460 506 24 12 0.04 9 0.3 26.00 2.45 29
    JGB37-3530-2460 810 24 7 0.04 6 0.3 42.00 2.64
    工程师建议 The engineer recommends：35kg以上不支持堵转 Blocked(Stall) rotor is not supported above 35kg

    Household appliances: electric curtains, integrated stoves, coffee machines, smart toilets, sweeping robots, dishwashers, range hoods, smart door locks

    Personal care: curling irons, massage equipment, electric hair clippers

    Office equipment: paper shredders, printers, projectors, banknote counters, coin counters

    Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs

    Industrial equipment: water and electricity valves, air switches, pumps, automatic door switches, automatic lubrication equipment

    Commercial equipment: vending machines, parking locks, ATM machines, smart lamps

    Robots: manipulators, drones, service robots

    Quantity: 100pcs/ctn
    Carton size: 38.5*27.5*24 cm
    Gross weight: 19.4 kg/ctn
    Net weight: 18.7 kg/ctn
    Single weight: 187g
