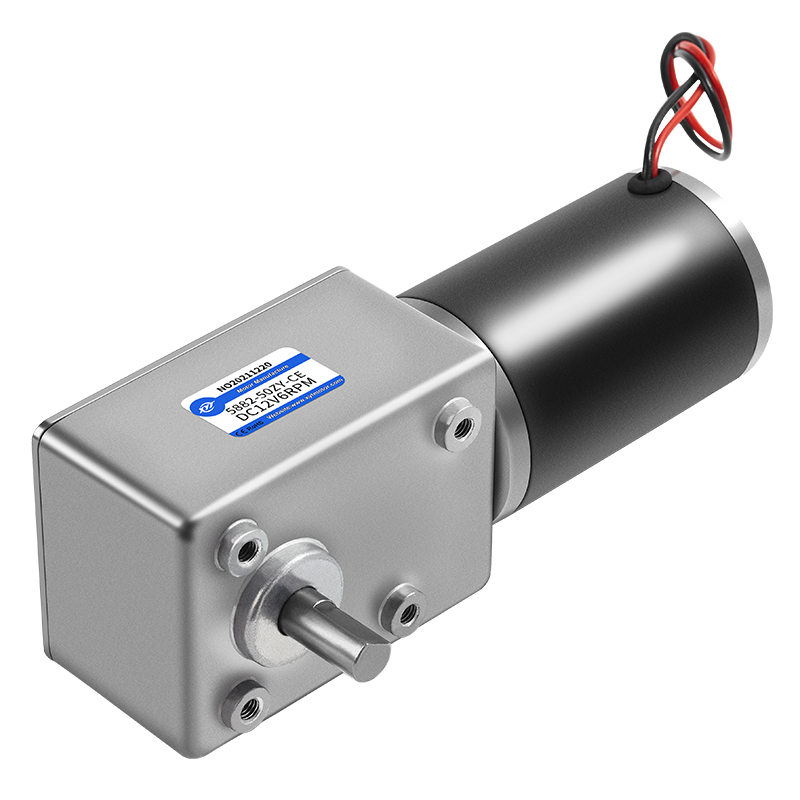

DC gear motor (worm gear)

5882-50ZY D10 20MM

Rated Voltage: 12-24V
Reduction Ratio: 16-1015I
No-Load Current mA(≤): 350-2000mA
No-load speed(RPM): 1.5~440rpm
Rated Torque(Kg,cm): 10-240kg,cm
Rated Speed(RPM):1.5-380rpm
Rated Current mA(≤): 900-8500mA
Stall/Maximum Torque (Kg,cm): 25-720kg,cm
Stall Current(A) : 2-19A

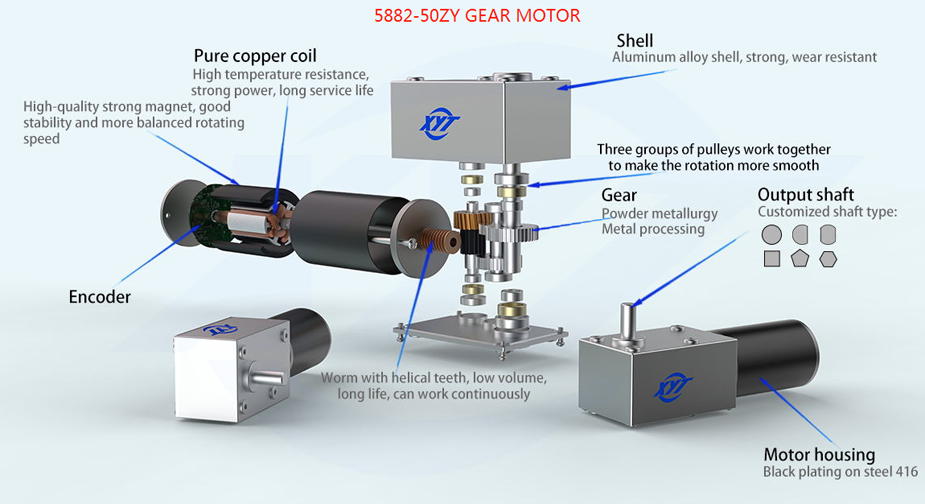

Shaft: 416 Steel, Φ10.0 Length 20mm ,
Gear: Steel gear . Dual ball bearing
Download


    XYT Motor Model

    Reduction ratio

    No-Load

    Rated Load

    Stall

    Rated Voltage (V)

    Speed (RPM ±10%)

    Current  (A)

    Speed (RPM ±10%)

    Current  (A)

    Torque (Kg,cm)

    Power(W)

    Torque (Kg.cm)

    Current  (A)

    XYT-5882-50ZY

    16

    12

    440

    2

    280

    8.5

    10

    102.00

    25

    16

    XYT-5882-50ZY

    16

    12

    310

    1.2

    185

    6.3

    10

    75.60

    20

    12

    XYT-5882-50ZY

    32

    12

    190

    2

    126

    6.5

    20

    78.00

    40

    16

    XYT-5882-50ZY

    48

    12

    150

    2

    99

    6.4

    35

    76.80

    60

    14.5

    XYT-5882-50ZY

    48

    12

    120

    1.5

    83

    5.5

    30

    66.00

    50

    13

    XYT-5882-50ZY

    89

    12

    80

    2

    58

    6.5

    60

    78.00

    110

    15.5

    XYT-5882-50ZY

    89

    12

    68

    1.8

    45

    5.8

    50

    69.60

    100

    19

    XYT-5882-50ZY

    169

    12

    42

    1.7

    30

    5.3

    80

    63.60

    180

    16

    XYT-5882-50ZY

    169

    12

    35

    1.5

    26

    5.2

    70

    62.40

    160

    15

    XYT-5882-50ZY

    225

    12

    24

    1.5

    18

    6.2

    120

    74.40

    Forbid Stall

    17

    XYT-5882-50ZY

    392

    12

    18

    2

    14

    6.5

    180

    78.00

    16.5

    XYT-5882-50ZY

    510

    12

    12

    1.7

    8

    6.2

    200

    74.40

    17.5

    XYT-5882-50ZY

    694

    12

    9

    2

    6

    5.8

    200

    69.60

    17.5

    XYT-5882-50ZY

    1015

    12

    6

    1.5

    4

    6

    240

    72.00

    15.5

    XYT-5882-50ZY

    1015

    12

    3

    0.3

    2

    1.5

    200

    18.00

    5

    XYT-5882-50ZY

    1015

    12

    1.5

    0.3

    1

    1

    200

    12

    2

    XYT Motor Model

    Reduction ratio

    No-Load

    Rated Load

    Stall

    Rated Voltage (V)

    Speed (RPM ±10%)

    Current  (A)

    Speed (RPM ±10%)

    Current  (A)

    Torque (Kg,cm)

    Power(W)

    Torque (Kg.cm)

    Current  (A)

    XYT-5882-50ZY

    16

    24

    440

    1.2

    295

    4.2

    12

    100.80

    30

    12

    XYT-5882-50ZY

    16

    24

    310

    0.6

    205

    3

    10

    72.00

    25

    8

    XYT-5882-50ZY

    32

    24

    190

    1

    135

    3.8

    25

    91.20

    50

    13

    XYT-5882-50ZY

    48

    24

    150

    1.1

    105

    6

    50

    144.00

    140

    16

    XYT-5882-50ZY

    48

    24

    120

    0.9

    86

    4.5

    40

    108.00

    100

    12

    XYT-5882-50ZY

    89

    24

    90

    1.1

    65

    3.5

    70

    84.00

    180

    16

    XYT-5882-50ZY

    89

    24

    70

    0.9

    51

    3.5

    55

    84.00

    160

    12

    XYT-5882-50ZY

    169

    24

    50

    1.2

    42

    6.2

    140

    148.80

    Forbid Stall

    18.5

    XYT-5882-50ZY

    169

    24

    35

    0.8

    26

    3.2

    110

    76.80

    11

    XYT-5882-50ZY

    225

    24

    24

    0.9

    17

    4

    150

    96.00

    12.5

    XYT-5882-50ZY

    392

    24

    18

    0.9

    13

    3.5

    200

    84.00

    13

    XYT-5882-50ZY

    510

    24

    12

    0.7

    8

    3.6

    220

    86.40

    12

    XYT-5882-50ZY

    694

    24

    9

    0.9

    6

    3

    250

    72.00

    13.5

    XYT-5882-50ZY

    1015

    24

    6

    0.7

    4

    3.5

    250

    84.00

    11.5

    XYT-5882-50ZY

    1015

    24

    3

    0.4

    2

    1.3

    240

    31.20

    13.5

    XYT-5882-50ZY

    1015

    24

    1.5

    0.35

    1

    0.9

    200

    21.6

    2

    Household appliances: electric curtains, integrated stoves, coffee machines, smart toilets, sweeping robots, dishwashers, range hoods, smart door locks
    Personal care: curling iron, massage equipment, electric hair clipper
    Office equipment: paper shredders, printers, projectors, banknote counters, coin counters
    Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs
    Industrial equipment: water and electricity valves, air switches, pumps, automatic door switches, automatic lubrication equipment
    Commercial equipment: vending machines, parking locks, ATM machines, smart lamps
    Robots: manipulators, drones, service robots
    Quantity: 28pcs/ctn
    Carton size: 38.5*27.5*24 cm
    Gross weight: 31.5 kg/ctn
    Net weight: 30.8 kg/ctn
    Single weight: 1.1kg
