DC gear motor (spur gear)

< >

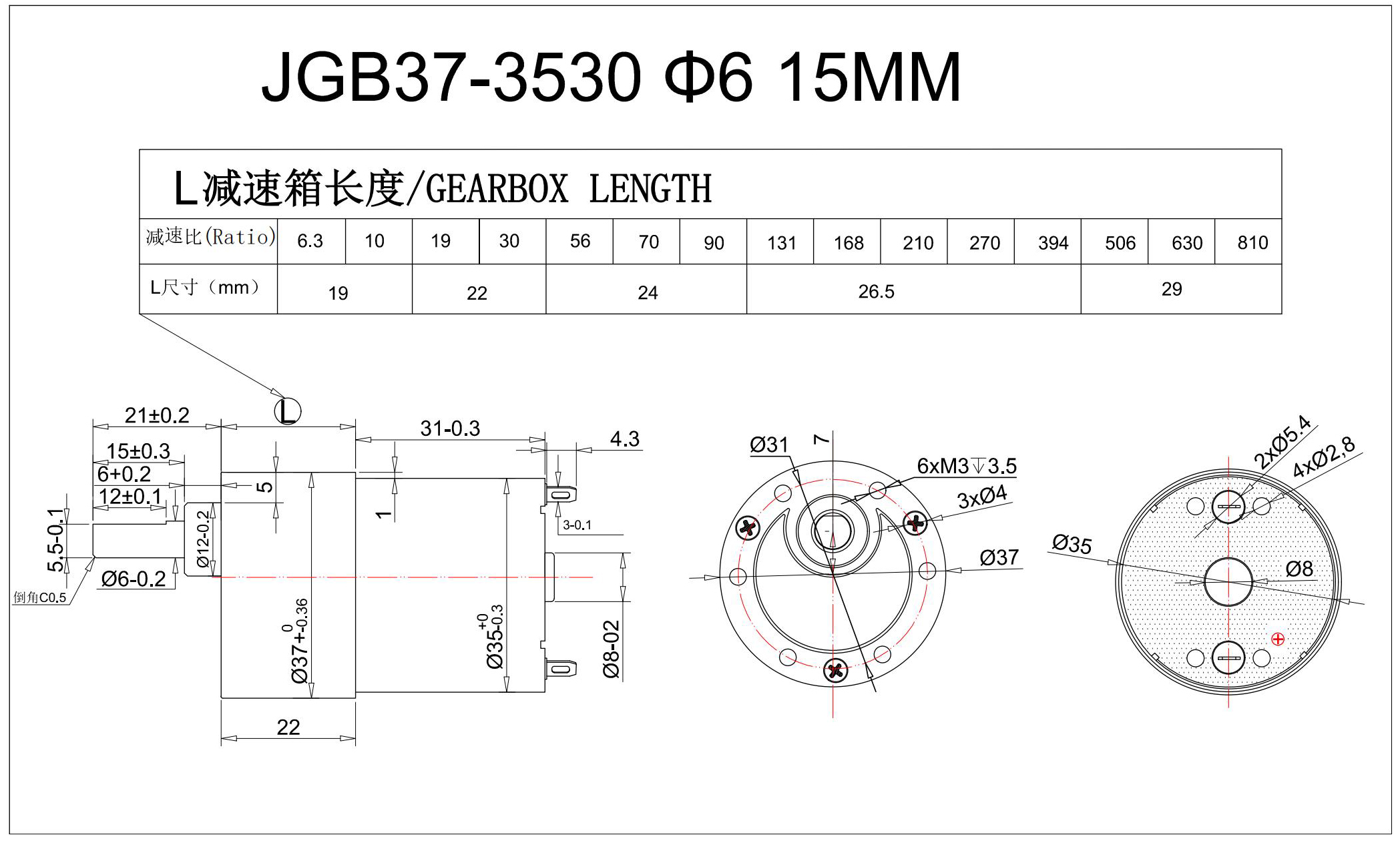

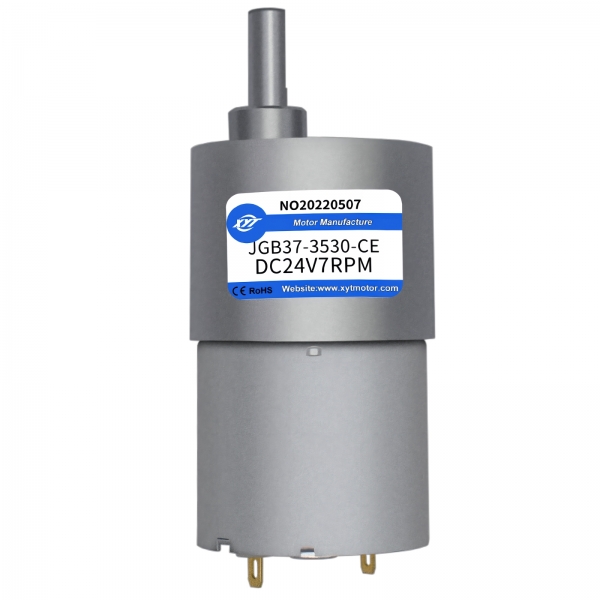

JGB37-3530 Φ6 15MM

Rated Voltage: 12-24V
Reduction Ratio: 6.25-810I
No-load speed(RPM): 7~1600rpm
No-Load Current mA(≤): 70-180mA

Rated Speed(RPM): 6-1231rpm

Rated Current mA(≤): 300-1200mA

Rated Torque(Kg,cm): 0.3-35kg,cm
Stall/Maximum Torque (Kg,cm): 1.2-140kg,cm
Stall Current(A) : 1.5-4.3A

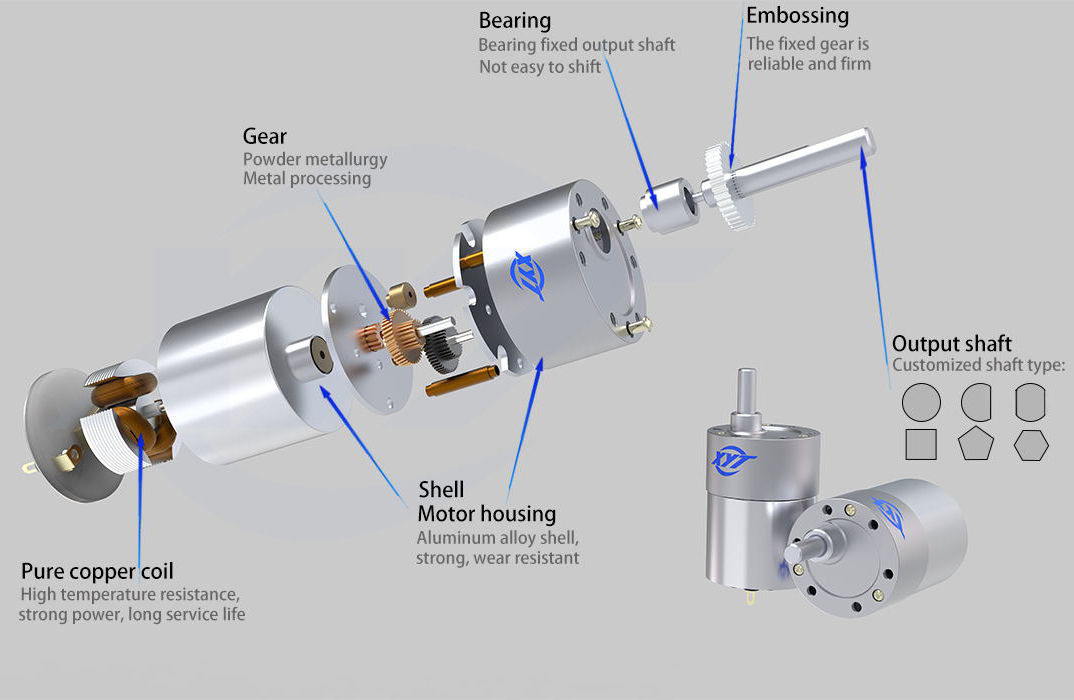

Shaft: 416 Steel, Φ6.0 Length 15mm ,
Gear: powder gear , copper gear

Download

XYT Motor Model	Reduction ratio	No-Load			Rated Load				Stall		Gearbox Length (MM)	Weight(G)	Output	Starting Voltage(V)
XYT Motor Model	Reduction ratio	Rated Voltage (V)	Speed (RPM ±10%)	Current (A)	Speed (RPM ±10%)	Current (A)	Torque (Kg,cm)	Power(W)	Torque (Kg.cm)	Current (A)	Gearbox Length (MM)	Weight(G)	Direction	Starting Voltage(V)
JGB37-3530-1260	6.25	12	960	0.1	738	0.69	0.35	8.20	1.4	2.3	19	175	CW	0.7
JGB37-3530-1260	10	12	600	0.1	462	0.69	0.50	8.20	2	2.3	19	175	CW	0.7
JGB37-3530-1260	18.8	12	320	0.1	246	0.69	1.00	8.20	4	2.3	22	180	CCW	0.7
JGB37-3530-1260	30	12	200	0.1	154	0.69	1.60	8.20	6.4	2.3	22	180	CCW	0.7
JGB37-3530-1260	56	12	107	0.1	82	0.69	2.60	8.20	10.4	2.3	24	185	CW	0.7
JGB37-3530-1260	70	12	85	0.1	65	0.69	3.30	8.20	13.2	2.3		185	CW	0.7
JGB37-3530-1260	90	12	66	0.1	51	0.69	4.30	8.20	17.2	2.3		185	CW	0.7
JGB37-3530-1260	131	12	45	0.1	35	0.69	5.70	8.20	22.8	2.3	26.5	190	CCW	0.7
JGB37-3530-1260	169	12	35	0.1	27	0.69	7.30	8.20	29.2	2.3		190	CCW	0.7
JGB37-3530-1260	210	12	28	0.1	21	0.69	9.10	8.20	36.4	2.3		190	CCW	0.7
JGB37-3530-1260	270	12	22	0.1	17	0.69	11.70	8.20	46.8	2.3		190	CCW	0.7
JGB37-3530-1260	394	12	15	0.1	11	0.69	15.40	8.20	61.6	2.3	29	200	CW	0.7
JGB37-3530-1260	506	12	12	0.1	9	0.69	19.80	8.20	79.2	2.3		200	CW	0.7
JGB37-3530-1260	630	12	9	0.1	7	0.69	24.70	8.20	98.8	2.3		200	CW	0.7
JGB37-3530-1260	810	12	7	0.1	6	0.69	31.70	8.20	126.8	2.3		200	CW	0.7
XYT Motor Model	Reduction ratio	No-Load			Rated Load				Stall		Gearbox Length (MM)	Weight(G)	Output	Starting Voltage(V)
XYT Motor Model	Reduction ratio	Rated Voltage (V)	Speed (RPM ±10%)	Current (A)	Speed (RPM ±10%)	Current (A)	Torque (Kg,cm)	Power(W)	Torque (Kg.cm)	Current (A)	Gearbox Length (MM)	Weight(G)	Direction	Starting Voltage(V)
JGB37-3530-2460	6.25	24	960	0.07	738	0.3	0.30	7.20	1.2	1.5	19	175	CW	1.4
JGB37-3530-2460	10	24	600	0.07	462	0.3	0.50	7.20	2	1.5	19	175	CW	1.4
JGB37-3530-2460	18.8	24	320	0.07	246	0.3	1.00	7.20	4	1.5	22	180	CCW	1.4
JGB37-3530-2460	30	24	200	0.07	154	0.3	1.60	7.20	6.4	1.5	22	180	CCW	1.4
JGB37-3530-2460	56	24	107	0.07	82	0.3	2.90	7.20	11.6	1.5	24	185	CW	1.4
JGB37-3530-2460	70	24	85	0.07	65	0.3	3.80	7.20	15.2	1.5		185	CW	1.4
JGB37-3530-2460	90	24	66	0.07	51	0.3	4.70	7.20	18.8	1.5		185	CW	1.4
JGB37-3530-2460	131	24	45	0.07	35	0.3	6.10	7.20	24.4	1.5	26.5	190	CCW	1.4
JGB37-3530-2460	169	24	35	0.07	27	0.3	8.00	7.20	32	1.5		190	CCW	1.4
JGB37-3530-2460	210	24	28	0.07	21	0.3	10.00	7.20	40	1.5		190	CCW	1.4
JGB37-3530-2460	270	24	22	0.07	17	0.3	12.70	7.20	50.8	1.5		190	CCW	1.4
JGB37-3530-2460	394	24	15	0.07	11	0.3	16.70	7.20	66.8	1.5	29	200	CW	1.4
JGB37-3530-2460	506	24	12	0.07	9	0.3	21.40	7.20	85.6	1.5		200	CW	1.4
JGB37-3530-2460	630	24	9	0.07	7	0.3	26.70	7.20	106.8	1.5		200	CW	1.4
JGB37-3530-2460	810	24	7	0.07	6	0.3	35.00	2.20	140	1.5		200	CW	1.4
XYT Motor Model	Reduction ratio	No-Load			Rated Load				Stall		Gearbox Length (MM)	Weight(G)	Output	Starting Voltage(V)
XYT Motor Model	Reduction ratio	Rated Voltage (V)	Speed (RPM ±10%)	Current (A)	Speed (RPM ±10%)	Current (A)	Torque (Kg,cm)	Power(W)	Torque (Kg.cm)	Current (A)	Gearbox Length (MM)	Weight(G)	Direction	Starting Voltage(V)
JGB37-3530-12100	6.25	12	1600	0.18	1231	1.2	0.45	14.40	1.8	4.3	19	175	CW	0.9
JGB37-3530-12100	10	12	1000	0.18	769	1.2	0.72	14.40	2.88	4.3	19	175	CW	0.9
JGB37-3530-12100	18.8	12	533	0.18	410	1.2	1.30	14.40	5.2	4.3	22	180	CCW	0.9
JGB37-3530-12100	30	12	333	0.18	256	1.2	2.00	14.40	8	4.3	22	180	CCW	0.9
JGB37-3530-12100	56	12	178	0.18	137	1.2	3.40	14.40	13.6	4.3	24	185	CW	0.9
JGB37-3530-12100	70	12	142	0.18	111	1.2	4.30	14.40	17.2	4.3		185	CW	0.9
JGB37-3530-12100	90	12	111	0.18	85	1.2	5.50	14.40	22	4.3		185	CW	0.9
JGB37-3530-12100	131	12	76	0.18	59	1.2	7.30	14.40	29.2	4.3	26.5	190	CCW	0.9
JGB37-3530-12100	169	12	59	0.18	46	1.2	9.40	14.40	37.6	4.3		190	CCW	0.9
JGB37-3530-12100	210	12	47	0.18	37	1.2	11.70	14.40	46.8	4.3		190	CCW	0.9
JGB37-3530-12100	270	12	37	0.18	28	1.2	15.00	14.40	60	4.3		190	CCW	0.9
JGB37-3530-12100	394	12	25	0.18	20	1.2	19.80	14.40	79.2	4.3	29	200	CW	0.9
JGB37-3530-12100	506	12	20	0.18	15	1.2	25.40	14.40	101.6	4.3		200	CW	0.9
JGB37-3530-12100	630	12	15	0.18	12	1.2	31.00	14.40	124	4.3		200	CW	0.9
JGB37-3530-12100	810	12	12	0.18	10	1.2	35.00	14.40	140	4.3		200	CW	0.9
XYT Motor Model	Reduction ratio	No-Load			Rated Load				Stall		Gearbox Length (MM)	Weight(G)	Output	Starting Voltage(V)
XYT Motor Model	Reduction ratio	Rated Voltage (V)	Speed (RPM ±10%)	Current (A)	Speed (RPM ±10%)	Current (A)	Torque (Kg,cm)	Power(W)	Torque (Kg.cm)	Current (A)	Gearbox Length (MM)	Weight(G)	Direction	Starting Voltage(V)
JGB37-3530-24100	6.25	24	1600	0.08	1231	0.63	0.50	14.40	2	3	19	175	CCW	1.3
JGB37-3530-24100	10	24	1000	0.08	769	0.63	0.80	14.40	3.2	3	19	175	CCW	1.3
JGB37-3530-24100	18.8	24	533	0.08	410	0.63	1.30	14.40	5.2	3	22	180	CW	1.3
JGB37-3530-24100	30	24	333	0.08	256	0.63	2.00	14.40	8	3	22	180	CW	1.3
JGB37-3530-24100	56	24	178	0.08	137	0.63	3.60	14.40	14.4	3	24	185	CCW	1.3
JGB37-3530-24100	70	24	142	0.08	111	0.63	4.50	14.40	18	3		185	CCW	1.3
JGB37-3530-24100	90	24	111	0.08	85	0.63	5.80	14.40	23.2	3		185	CCW	1.3
JGB37-3530-24100	131	24	76	0.08	59	0.63	7.70	14.40	30.8	3	26.5	190	CW	1.3
JGB37-3530-24100	169	24	59	0.08	46	0.63	9.90	14.40	39.6	3		190	CW	1.3
JGB37-3530-24100	210	24	47	0.08	37	0.63	12.30	14.40	49.2	3		190	CW	1.3
JGB37-3530-24100	270	24	37	0.08	28	0.63	15.90	14.40	63.6	3		190	CW	1.3
JGB37-3530-24100	394	24	25	0.08	20	0.63	20.80	14.40	83.2	3	29	200	CCW	1.3
JGB37-3530-24100	506	24	20	0.08	15	0.63	26.80	14.40	107.2	3		200	CCW	1.3
JGB37-3530-24100	630	24	15	0.08	12	0.63	33.00	14.40	132	3		200	CCW	1.3
JGB37-3530-24100	810	24	12	0.08	10	0.63	35.00	14.40	140	3		200	CCW	1.3

typical application

Household appliances: Electric curtains, integrated stoves, coffee machines, smart toilets, robot vacuums, dishwashers, range hoods, smart door locks

Personal care: hair curlers, massage instruments, electric hair clippers

Office equipment: shredders, printers, projectors, banknote counting machines, coin counting machines

Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs

Industrial equipment: water and electrical valves, air switches, pumps, automatic door switches, automatic lubrication equipment

Commercial equipment: vending machines, parking locks, ATM machines, smart lamps

Robots: manipulators, drones, service robots

Quantity: 100pcs/ctn

Carton size: 38.5*27.5*24 cm

Gross Weight: 20.8 kg/ctn

Net weight: 20.0 kg/ctn

Single weight: 200g

EPE Pearl Cotton Packaging

Standard carton packaging
